Kit for 2 swing gates up to 1.8m Nice WALKYKIT 2024 BD KCE

Name: Kit for 2 swing gates up to 1.8m Nice WALKYKIT 2024 BD KCE
SKU: WALKY2024BDKCE
Price: 724.68 EUR
Availability: InStock

Disponible

SKU: WALKY2024BDKCE

Este producto se enviará dentro de 20 días hábiles

¿Eres un revendedor? Registrar aquí

Descripción

Kit for the automation of swing gates with leaves up to 1.8 m, 24 Vdc, with articulated arm, external mounting.
Particularly suitable for wooden or PVC gates. 24 Vdc irreversible electromechanical gear motor, with articulated arm.

Ultra compact: ideal for pedestrian gates, recommended for small columns (8 cm wide).

Safe: thanks to the irreversible motor and the anti-shearing arm with integrated mechanical limit switch (with full arm installation).

Practical: the articulated arm makes installation possible in particular conditions, such as in the presence of walls or obstacles adjacent to the column.

Quick: no waiting in front of the gate, only 7 seconds to open or close (in optimal installation conditions, with reduced arm and 90 ° opening).

Convenient: integrated LED flashing light, with courtesy light function (WLT, optional); rapid motor release to manually operate the gate.

Integrated control unit:

• simple programming;

• self-learning of opening and closing limit switches;

• self-diagnosis of anomalies;

• pause time programming;

• pedestrian door;

• slowdown in opening and closing;

• prepared for the connection of the latest generation sensitive edges

No blackout: operation in the absence of current with the optional batteries (PS424) housed inside the motor.

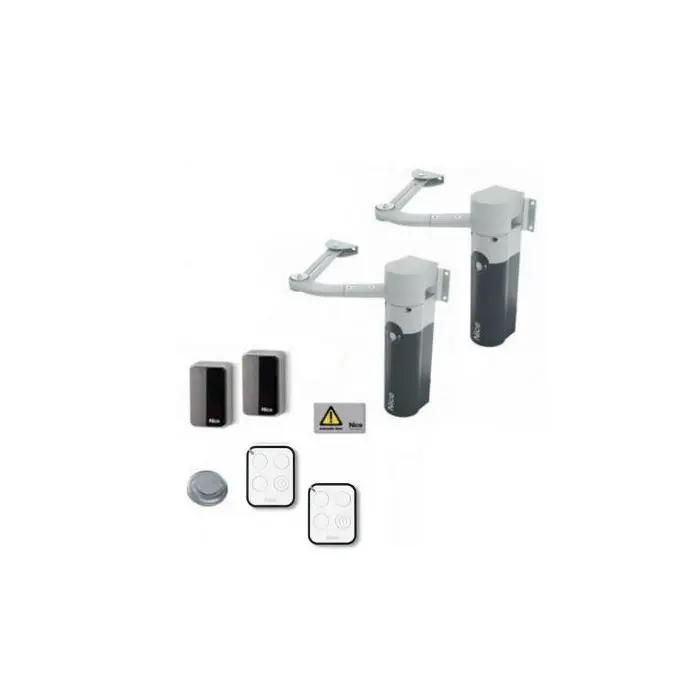

THE KIT CONTAINS


Item number	Description	Quantity
WL1024C + WL1024	2 electromechanical gearmotors for external mounting; WL1024C (with control unit and bidirectional radio receiver with OXIBD connection included), WL1024 (without control unit).	2
ON3EBD	2 bidirectional transmitters	2
EPMB	Pair of outdoor photocells arranged for connection via Nice BlueBUS	1
TS	Signage table	1

Attention: WLT flashing light not included in the kit.

Ficha de datos

FEATURES

Code	WL1024C	WL1024
Electrical data
Power supply (Vac 50/60 Hz)	230	-
Power supply (Vdc)	-	24
Absorption (A)	0.8	2
Power (W)	120	30
Performance data
Speed (RPM)	1.5 - 2.2
Pair (Nm)	120
Work cycle (cycles / hour)	50
Dimensional and generic data
Degree of protection (IP)	44
Operating temp. (Â ° C Min / Max)	-20 ÷ +50
Dimensions (mm)	90x125x385 h
Weight kg)	4.8	4.3

Más información

Ean	8032595796909
Shipping	Shipping 24/48H
Warranty	Garantía de 2 años
Type of Gate	Swing gate
Technology	electromechanical
Motor type	Articulated Arm
Alimentación	24v
