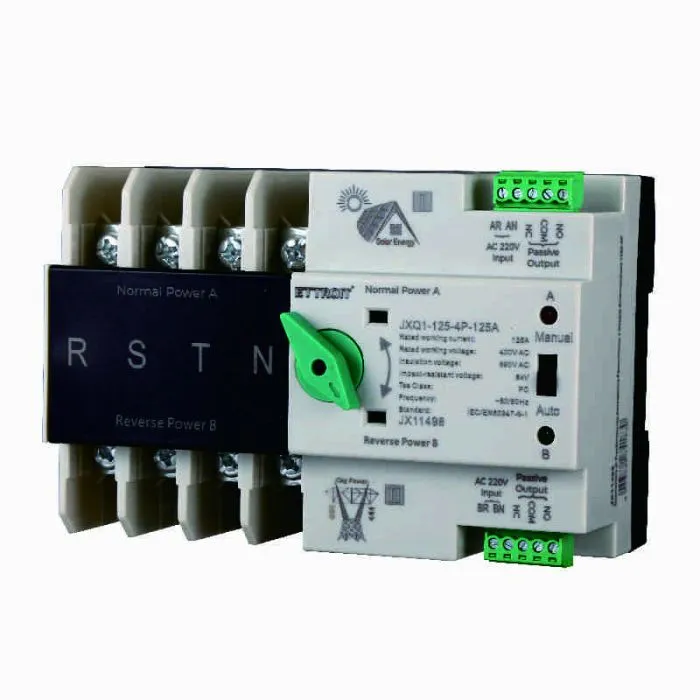

ETTROIT JX11498 ATS Dual Power Photovoltaic Automatic Transfer Switch 125A 4P

Name: ETTROIT JX11498 ATS Dual Power Photovoltaic Automatic Transfer Switch 125A 4P
Brand: ETTROIT
SKU: JX11498
Price: 60 EUR
Availability: InStock

In stock

SKU: JX11498

Are you a Reseller? Register Here

Description

ETTROIT 125A 4P Dual Power Photovoltaic Automatic Transfer Switch (model JX11498 ) is a device designed for energy management in photovoltaic systems, enabling switching between two power sources. This switch can handle a nominal current of 125A and a working voltage of 400V AC , with a surge protection of 8kV . It is particularly useful in photovoltaic systems that require automatic switching between the main power supply and the backup power supply (such as from a solar array).

Main features:

Rated current : 125A
Working voltage : 400V AC
Insulation voltage : 690V AC
Shock resistant voltage : 8kV
Type classification : PC (hard plastic material)
Frequency : 50/60Hz
Short circuit current limit : 50kA
Power supply type : AC 220V
Automatic function : Automatic switching between power sources
Manual function : Manual switching available
Certification : IEC/EN 60947-6-1
Application : Photovoltaic systems and other applications where automatic control between energy sources is required

Advantages:

Reliability and safety : With surge protection and 50kA short circuit current limit, the switch ensures safe operation.
Auto-switching : Optimizes energy use by automatically switching from the grid to solar power when needed.
Ease of use : Manual switching is available in case of automatic malfunction.

Data sheet

Characteristic Detail

Model	JX11498
Product type	Photovoltaic automatic transfer switch
Rated current	125A
Working voltage	400V AC
Insulation voltage	690V AC
Shock resistant tension	8kV
Type class	PC (durable plastic material)
Frequency	50/60Hz
Short circuit current limit	50kA
Control voltage	220V AC
Switching type	Automatic, manual available
Certification	IEC/EN 60947-6-1
Power supply type	AC 220V
Applications	Photovoltaic systems, energy control applications
Dimensions	120mm (height) x 110mm (width) x 60mm (depth)
Weight	0.8 kg
Functions	Automatic switching between power sources, manual switching

More Information

SKU Padre	JX11498
Ean	8053782741830
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	125A
Int. power Ka	50Ka
Classe A	No
Smart home	No
Module Type	Interruttore trasferimento automatico
Number of modules	4
Voltage	AC:200-240V
Packaging	1
