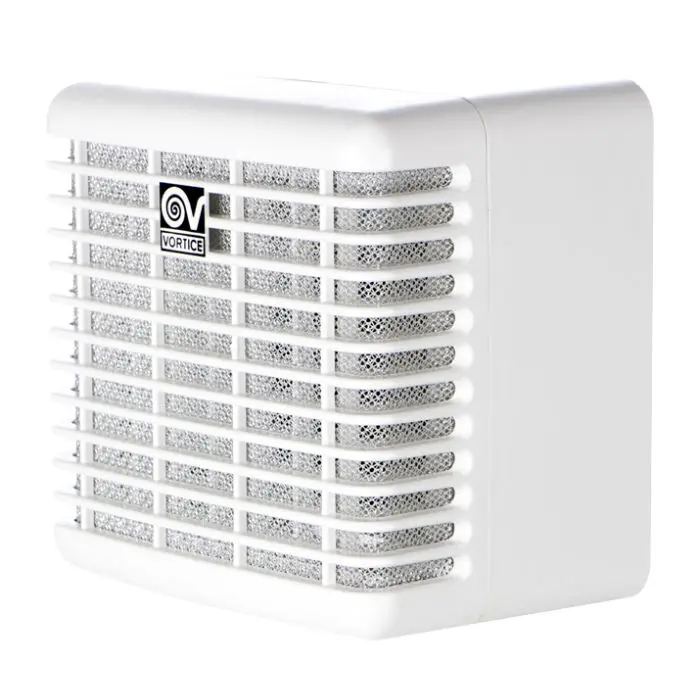

VORTICE 11968 VORT PRESS 110 LL T Centrifugal aspirator for 100 mm duct with timer

Name: VORTICE 11968 VORT PRESS 110 LL T Centrifugal aspirator for 100 mm duct with timer
Brand: VORTICE
SKU: VOR0000011968
Price: 218.96 EUR
Availability: OutOfStock

Out of stock

SKU: VOR0000011968

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

VORTICE CODE 11968 - VORT PRESS 110 LL T

The VORTICE VORT PRESS 110 LL T is a centrifugal aspirator designed to offer effective ventilation through ducts, combining robustness, silence and versatility. Here is an overview of its main features:

Construction and Materials

Material : Made of plastic resin resistant to aging and the effects of the sun, known as "UV resistant", which guarantees long life and resistance to adverse weather conditions.
Nominal Diameter : 100 mm, ideal for installation in narrow spaces or compact ventilation systems.

Engine Performance and Ventilation

Motor : Equipped with a 2-speed motor, mounted on ball bearing supports to reduce wear and ensure smooth and long-lasting operation. The motor is coupled to a forward-bladed centrifugal impeller for efficient air movement.
Flow rate : Offers a variable air flow rate from a minimum of 55 m³/h to a maximum of 110 m³/h, covering a wide range of ventilation needs.

Functionality and Control

Smart Timer : The device is equipped with a smart timer that manages the start and operation of the fan based on the light. After the light is turned on, the extractor starts working after approximately 40 seconds. When the light is turned off, it continues to operate at minimum speed for an adjustable period, which can range from 30 seconds to 30 minutes.
Speed Adjustment : You can control the speed of the fan using a Vortice regulator, allowing precise adjustment of the airflow according to your needs.

The VORTICE VORT PRESS 110 LL T is ideal for residential and commercial applications where an efficient and silent ventilation system is required. Its rugged construction and advanced features make it a versatile and reliable choice for improving air quality in various environments

Data sheet

Characteristic Detail

Max current absorbed at max speed (A)	0.22
Max current absorbed at min speed (A)	0.07
Nominal Duct Diameter (mm)	100
Frequency (Hz)	50
Protection Grade	IPX4
Isolation	2nd class
Ø Exhaust (mm)	97
Weight kg)	1.95
Max power absorbed at max speed (W)	24
Max power absorbed at min speed (W)	12
Maximum continuous operating ambient temperature (°C)	40
Voltage (V)	220-240
Max flow rate at max speed (l/s)	30.6
Max flow rate at max speed (m³/h)	110
Max flow rate at min speed (l/s)	15.3
Max flow rate at min speed (m³/h)	55
Max pressure at max speed (mmH2O)	16
Max pressure at max speed (Pa)	157
Max pressure at min speed (mmH2O)	10
Max pressure at min speed (Pa)	98
Sound pressure Lp [dB (A)] at 3m - max speed	41
Sound pressure Lp [dB (A)] at 3m - min speed	30
RPM max	1760
RPM min	925

Here

More Information

SKU Padre	11968
Ean	8010300119687
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	resina plastica
Nominal diameter	100mm
Installazione	a muro
Colore	White
Watts	15
Smart home	No
Waterproof	IP54
Packaging	8
Voltage	AC:200-240V
