VORTICE 150/6" AR Helical wall extractor / Glass 150 mm with automatic operation

Name: VORTICE 150/6" AR Helical wall extractor / Glass 150 mm with automatic operation
Brand: VORTICE
SKU: VOR0000012612
Price: 140.03 EUR
Availability: InStock

In stock

SKU: VOR0000012612

Are you a Reseller? Register Here

Description

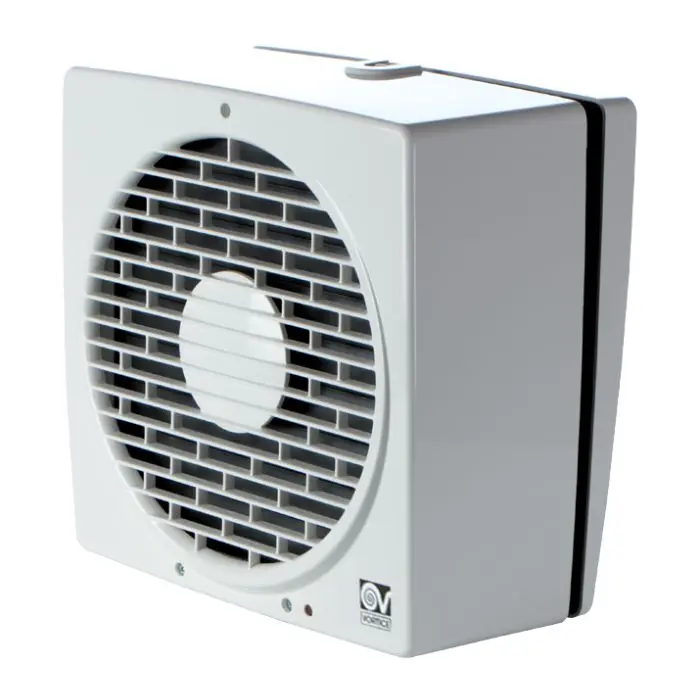

Wall/window helical extractor fan "VORTICE 150/6" AR:

Application : Designed for window or wall installation, making it versatile for different environments.
Reversibility Function : It can perform both air intake and exhaust, improving its usefulness in different environmental conditions.
Automatic Shutter : This feature prevents cold air and bad odors from entering when the device is turned off, improving comfort and maintaining indoor air quality.
Materials : Made of ABS plastic resistant to aging due to exposure to UV rays, ensuring durability and long-term performance even under sunlight.
Dimensions : It has a nominal diameter of 150mm, indicating that it is suitable for moderately sized openings.
Engine and Components : The engine is thermally protected and has a shaft mounted on self-lubricating bushing supports. It is coupled to a helical impeller made of thermoplastic material with aerofoil blades, ensuring effective air movement.

This extractor is ideal for environments where controlling airflow and maintaining indoor air quality is crucial, such as kitchens, bathrooms or commercial environments.

Data sheet

Specific Value

Automatic opening	Yes
Max absorbed current (A)	0.11
Frequency (Hz)	50-60
IP Protection Rating	IPX4
Isolation	2nd class
Ø Exhaust (mm)	150
Weight kg)	2.07
Max absorbed power (W)	25
Max absorbed power 60Hz (W)	25
Maximum continuous operating ambient temperature (°C)	50
Max continuous operating ambient temperature 60Hz (°C)	50
Voltage (V)	220-240
Max flow rate (m³/h)	235
Max suction flow rate (l/s)	65.3
Max suction flow rate (m3/h)	235
Max flow rate in ventilation (l/s)	41.7
Max flow rate in ventilation (m3/h)	150
Sound Pressure Lp [dB (A)] 3m	37.5
RPM	1340
RPM in suction	1340
RPM in ventilation	- (not specified)

More Information

Ean	8010300126128
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	ABS
Nominal diameter	150mm
Installazione	a muro
Colore	White
Smart home	No
Waterproof	IP20
Voltage	AC:200-240V
