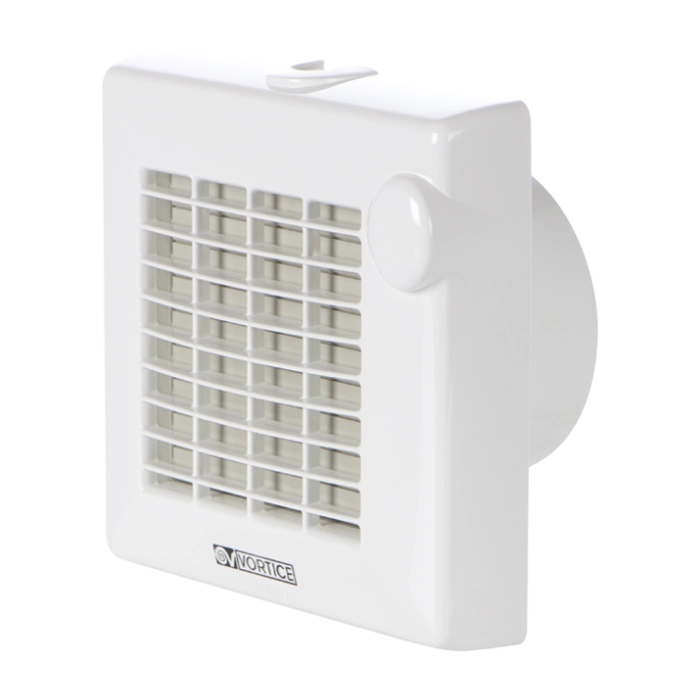

The VORTICE M 100/4" A LL wall-mounted helical extractor fan is designed to ensure excellent ventilation in residential and commercial environments.
Made of UV-resistant plastic resin , it is ideal for prolonged use without risk of deterioration.
Equipped with a thermally protected motor with ball bearings (LL) for greater durability, it offers high suction efficiency with a flow rate of 90 m³/h and a maximum pressure of 29 Pa .
The automatic opening system of the front flaps improves airflow management, reducing energy consumption and increasing efficiency.
| Brand | VORTEX |
| Model | M 100/4" A LL |
| Code | 11222 |
| Typology | Wall mounted helical extractor |
| Material | UV resistant plastic resin |
| Nominal Diameter | 100mm |
| Ø Exhaust | 99mm |
| Maximum flow rate | 90 m³/h (25 l/s) |
| Maximum Pressure | 3 mmH2O (29 Pa) |
| Rotation Speed | 2300 RPM |
| Max Absorbed Current | 0.1 A |
| Max Power Absorbed | 18 W |
| Supply Voltage | 220-240V |
| Frequency | 50 Hz |
| Degree of Protection | IPX4 |
| Insulation | II Class |
| Noise | 37.5 dB(A) at 3m |
| Max Ambient Temperature | 50°C (continuous operation) |
| Weight | 0.6 kg |
| Opening System | Automatic |
| Engine Mounts | Ball bearings (LL) for longer life |
| SKU Padre | VOR0000011222 |
|---|---|
| Ean | 8010300112220 |
| Shipping | Shipping 24/48H |
| Materials | resina plastica |
| Nominal diameter | 100mm |
| Installazione | a incasso |
| Colore | White |
| Watts | 3.2 |
| Smart home | No |
| Waterproof | IP20 |
| Packaging | 1 |
| Voltage | AC:200-240V |
