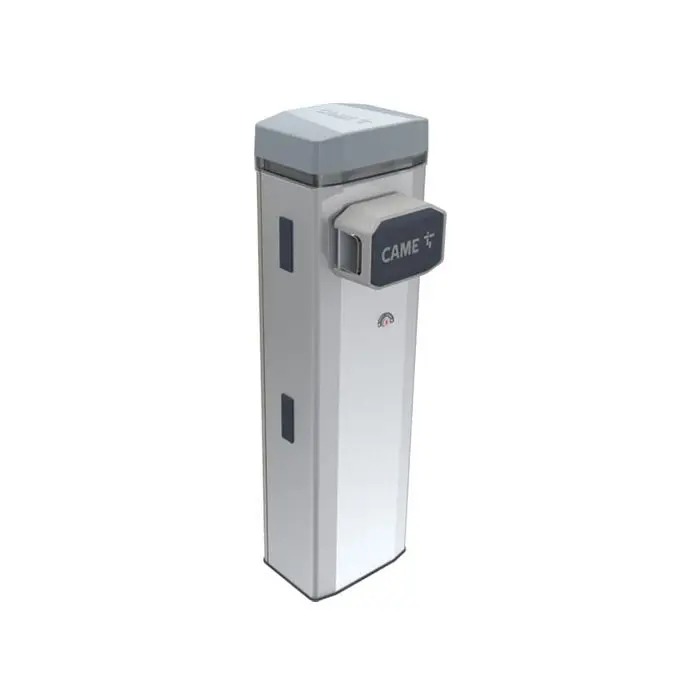

CAME GARD GT8 GGT80AX4 803BB-0250 Automatic barrier 24V operator up to 7,8m with encoder AISI 304 satin-finish steel cabinet balancing spring included

Name: CAME GARD GT8 GGT80AX4 803BB-0250 Automatic barrier 24V operator up to 7,8m with encoder AISI 304 satin-finish steel cabinet balancing spring included
Brand: CAME
SKU: 803BB-0250
Price: 14710.91 PLN
Availability: OutOfStock

Brak w magazynie

SKU: 803BB-0250

Additional shipping charge of 50,00 zł

This product has an additional shipping charge.

Powiadom mnie, kiedy ten produkt powróci

Ta strona jest chroniona przez podsumowanie, a przed Polityka prywatności i Warunki Google.

Czy jesteś sprzedawcą? Rejestracja tutaj

Opis

CAME GARD GT8 The new benchmark for automatic barriers. GGT80AX4 803BB-0250 Automatic barrier with 24 V DC operator with encoder; AISI 304 satin-finish steel cabinet with set up for fitting accessories. Balancing spring included. Ideal solution for heavy-duty service on driveway. Net clearance up to 7,8 m.

Resistant
Cabinet in galvanised and painted steel or in AISI 304 or AISI 316 stainless steel. The elegantly shaped cabinet is designed for the
integration of safety accessories.

Advanced Speed Control
Thanks to this innovative function the movement is smooth and constant both when opening and when closing, without annoying oscillations that would compromise the integrity of the mechanical system and the boom itself. The control board continuously analyses the forces acting on the boom, adjusting the speed according to the parameters measured, guaranteeing durability and reliability in all climatic conditions.

Everything with two wires
CXN is CAME’s new non-polarised 2-wire BUS system. Using innovation within the ZL392 control board and the new range of CXN bus accessories, it is now possible to unlock intelligence within the control panel to create a a 250 user mini access control system that runs directly from control board, without the need for an additional system. Users can also be programmed in using the CAME Setup App.

GT Series & Connect
Connect offers a robust cloudbased management tool that allows unlimited users to remotely operate your GARD GT4/GT8 barriers at the simple touch of a button, via your smartphone or tablet using CAME’s Automation App or via a PC and web connection. Map all your GT barriers on a site and monitor your system status remotely via the Connect cloud. For the first time ever, it is now FREE to take advantage of cloud connectivity via Connect.

Single spring balancing
CAME’s R&D department has developed a practical variable balancing system, which allows using a single spring (included) that can be connected to the balancing lever at different predefined fastening points. It is therefore no longer necessary to have specific springs for the different boom lengths, operating sufficiently with the use of a hooking system.

Battery Backup
In the occurrence of a blackout or in any emergency situation where an electrical problem occurs, Gard GT is able to operate in complete safety thanks to an auxiliary battery power supply system (optional).

Integrated Light
The red/green LED lighting system eliminates the traditional flashing light, and offers traffic light signaling for greater
safety. It can be installed both on the cabinet structure and on the boom on both sides, and controls access by means of red, flashing red or green signaling.

Reliable & Safe
24 V DC operator, ENCODER and ADVANCED SPEED CONTROL for controlling the forces applied to the boom. Shockproof rubber profile and efficient obstacle detection system.

Main Features

24 V DC operator with Advanced Speed Control.
Control board with display, CONNECT technology and inputs for CXN BUS accessories.
Tested for intensive use of 160 cycles/hour with MCBF 3 million cycles.
Cabinet available in galvanized steel and painted RAL7024, AISI 304 and AISI 316 steel, or in customized color.
Accessories that can be integrated directly into the cabinet.
High visibility red/green LEDs on the crown and on both sides of the boom.
It can be integrated with third party systems through MODBUS protocol.
