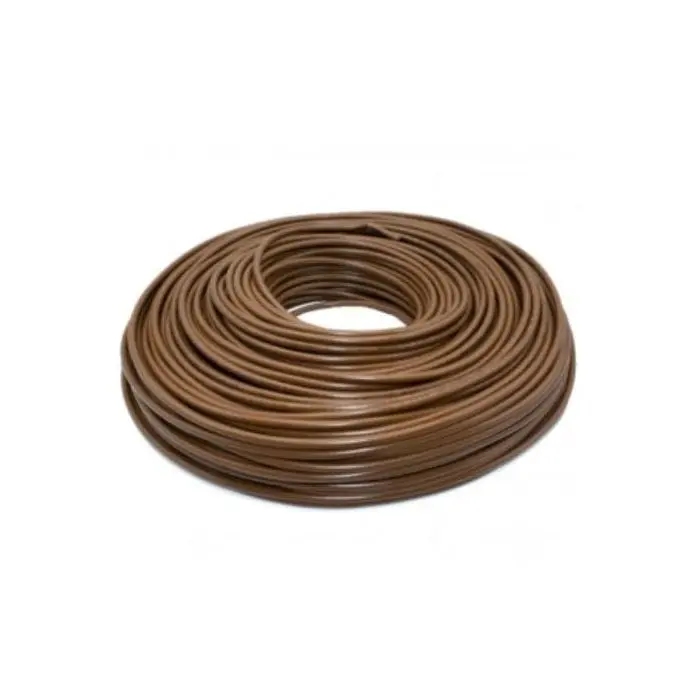

Electric cable FROR quadripolar CPR FS18OR18 300/500-V 4GX2.5mm² brown - reel 100m

Name: Electric cable FROR quadripolar CPR FS18OR18 300/500-V 4GX2.5mm² brown - reel 100m
SKU: 284FS2.5
Price: 707.89 PLN
Availability: InStock

(1)

W magazynie

SKU: 284FS2.5

Czy jesteś sprzedawcą? Rejestracja tutaj

Opis

Flexible cable for energy, signaling and control, insulated in S18 quality PVC, under a R18 quality PVC sheath, with particular fire reaction characteristics. Resistant to mechanical stress, fire and flame retardant, very low emission of halogens, fumes, toxic and corrosive gases. Good behavior at low temperatures, good flexibility, smoothness and excellent peelability. Good resistance to abrasion Complies with the regulation in accordance with the European Construction Products CPR (EU) n.305 / 11 standard.

Applications
Cables for energy transport and signal transmission, suitable for installation for fixed installation in internal rooms with dry or wet environments and in places with fire danger. Temporary installation is also allowed outdoors. For laying in open air in pipes or channels and in metal structures.

Arkusz danych

Model: 284FS2.5
Conductor number: 4 (Grey/Black/Brown/Yellow-Green).
Section - Nominal: 2.5
Diameter - Indicative conductor (mm): 1.9
Average insulation thickness (mm): 0.5
Maximum external diameter (mm): 9,0
Indicative weight Kg./Km. : 159
Electrical resistance at 20 ° C. - Maximum Ω / Km:7,98
Conductor: In annealed red copper with flexible round cord class 5
Core insulation: Polyvinyl chloride (PVC) quality S18
Outer sheath: R18 quality polyvinyl chloride (PVC) sheath coating.
Marking: Stamping on the insulation every 1 m
Rated voltage: Uo / U: 300/500 V
Maximum working temperature: 70 ° C
Minimum operating temperature: -15 ° C
Maximum short circuit temperature: 160 ° C
Minimum installation temperature: 0 ° C
Minimum recommended bending radius: 4 times the diameter of the cable
Maximum recommended tractive effort: 50 N / mm² of section
Color: Brown
Hank: 100 meters.

Complying with the Construction Products Regulation (CPR) Standard: EN 50575: 2014 + A1: 2016Class: CCA S3 D1 A3Classification (CEI UNEL 35016): EN 13501-6Emission of heat and fumes during flame development: EN 50399Vertical flame propagation: EN 60332-1-2Corrosive and halogen gases: EN 60754-2 Reference standards CEI 20-402014/35 / EU2011/65 / EU
