Box 1 PZ

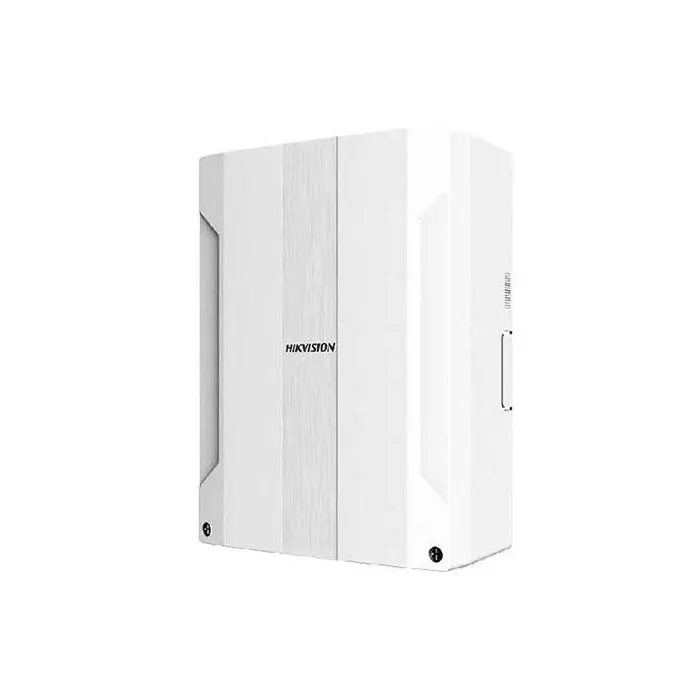

Hikvision AXPRO DS-PWA64-M2H-WE Hybrid control unit 16 wired zones, 2 outputs, 3G/4G/Wifi/Lan up to 64 total zones Grade II

Name: Hikvision AXPRO DS-PWA64-M2H-WE Hybrid control unit 16 wired zones, 2 outputs, 3G/4G/Wifi/Lan up to 64 total zones Grade II
SKU: DS-PWA64-M2H-WE
Price: 1161.07 PLN
Availability: OutOfStock

Brak w magazynie

SKU: DS-PWA64-M2H-WE

Powiadom mnie, kiedy ten produkt powróci

Ta strona jest chroniona przez podsumowanie, a przed Polityka prywatności i Warunki Google.

Czy jesteś sprzedawcą? Rejestracja tutaj

Opis

AX PRO supports Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central, which is applicable to the scenarios of market, store, house, factory, warehouse, office, etc..

Key Feature

Model sku. DS-PWA64-M2H-WE
TCP/IP, Wi-Fi, and GPRS/3G/4G network
New generation wireless protocol: Tri-X/Cam-X
Long RF transmission distance
Two-way communication with AES-128 encryption
Connects up to wireless zones/outputs (including 48 PIRCAMs), 16 wired zones, 2 wired outputs, 48 wireless keyfobs, 4
repeaters, 6 sounders, 8 tag readers & keypads.
The capability varies according to the model of device.
Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
Voice prompt
Configuration via Web client, mobile client, and Convergence Cloud
Hik-Connect and Hik-ProConnect configuration depends on the user access level
Pushes alarm notification via messages or phone calls
Views live videos from Hik-Connect
Alarm video clips via emails and APP
Uploads alarm reports to ARC
Supports LED indicator to indicates system status
4520 mAh lithium backup battery or 12v 7Ah storage battery depends on model of device
SIA-DC09 protocol, and supports both Contact ID and SIA data format
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Arkusz danych

RF frequency	868 MHz
Keyfob	48
Wireless sounder	6
Keypad	8 (Including Tag reader)
Tag	48
Zone	Up to 64 (including 48 PIRCAMs & 16 onboard Wired Zones & onboard Wired Outputs)
Trasmitter	Up to 64 (Single), up to 3 (Multi)
Onboard video clip	4
User - Admin, installer, user	1, 120, 46
Area	32
LEDs indication	Arm/Disarm, Alarm, Alert, Cloud, Power
Memory Log stored	Alarm&abnormal (3000), user operation (1500), user management (200)
Programming tool	Hik-Connect/Hik-ProConnect/Web Portal/IVMS4200/Convergence Cloud
Network	Wired network, Wi-Fi, 3/4G on board
ARC protocol	SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK), CSV-IP, FSK Module Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
SIM Slot	Dual
Power supply	100 - 240V~, 50/60 Hz, 0.66A - 0.3A
Battery type	12v 7Ah storage battery (sold separately), up to 36 hours.
Operation temperature	-10 °C to 40 °C
Dimension (W×H×D)	261 mm x 199 mm x 86,4 mm
Weight	1083g (No battery)
