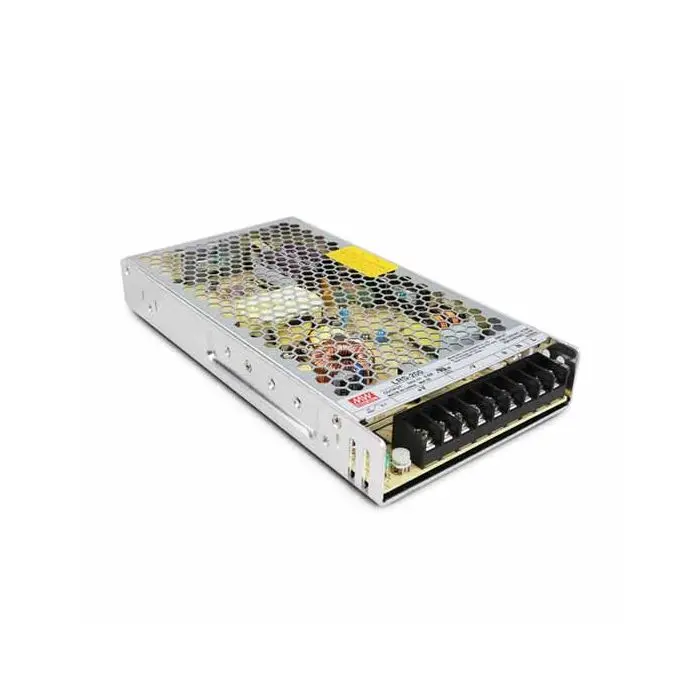

Switching power supply 200.4W 12Vdc 16.7A single output Meanwell RSP-200 Series Mod. RSP-200-12
MEANWELL is among the major manufacturers of Industrial Power Supplies, specialized in the production of all types of power supplies/transformers. Meanwell's success is linked to its extremely high quality products which have made it the number one company in the sector.
Built-in active PFC function and PF less than 0.95
high efficiency up to 89%
Protections against short circuits
Overload protection
Protection against overvoltage and overtemperature
Air cooling by natural convection
30mm low profile design for 1U installation
LED indicator for power
Operating temperature between -30°C and 70°C.
Panel mounting
Technical features Producer MEAN WELL Power supply type pulsed Power supply type modular Power 200.4W Output voltage 12V DC, 10...13.2V DC Output current 16.7A Supply voltage 88...264V AC, 124...370V DC Mass 720g Electrical connection terminal block Protection overload, overheating, voltage increase, short circuit Assembly built-in Number of exits 1 Working temperature -30...70°C External dimensions 215 x 115 x 30mm Characteristics of power supplies/converters nominal parameters obtained with full load Agility 89% Series RSP-200 Case type 207B Additional functions Active PFC Compatible accessories MHS-012
