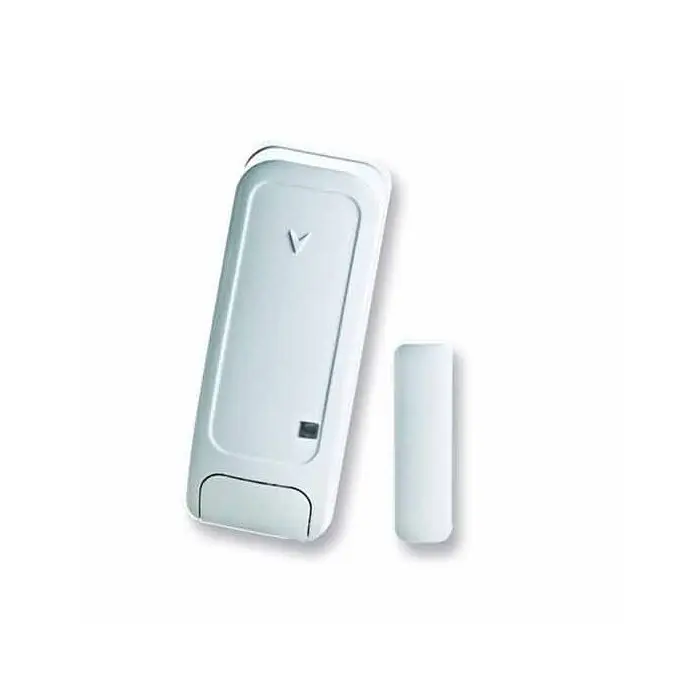

Bentel BW-IO multifunctional wireless magnetic contact protection doors / windows white

Name: Bentel BW-IO multifunctional wireless magnetic contact protection doors / windows white
Brand: BENTEL SECURITY
SKU: BW-IO
Price: 74.52 EUR
Availability: OutOfStock

Out of stock

SKU: BW-IO

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Bidirectional and multifunctional wireless Bentel magnetic sensor compatible with Bentwood BW control units. Thanks to the module with 2 independent input pins it is possible to connect wired and supervised sensors and through the 2 output pins, various home automation activities can be managed through the BW APP. Through the BW-IO, the Bentel Wireless BW Series can handle up to 16 outputs, greatly increasing the installation opportunities and satisfying the widest and most diversified needs of users, installers and security institutions. The device is protected against tampering, both for opening the front cover and for removing the rear base.

Data sheet

Bidirectional and multifunctional wireless Bentel magnetic contact
Compatible with Bentwood BW control units (with firmware 19.4 and higher)
2 independent input PINs for connection to wired and supervised sensors
2 exit PIN for managing home automation activities via APP
Each of the two multipurpose inputs can be configured remotely as input: 'Normally Closed', 'Normally Open', 'Balanced' or 'Double Balancing'
Useful for expanding the outputs of the BW control panels (up to 16)
3V battery power already on board
Possibility of use only as a transmitter
Dimensions: 81 x 34 x 25 mm
The battery voltage is monitored constantly and, in the case of a low battery, a notification is sent to the control panel.
Power is supplied by a 3V Lithium battery integrated on board
