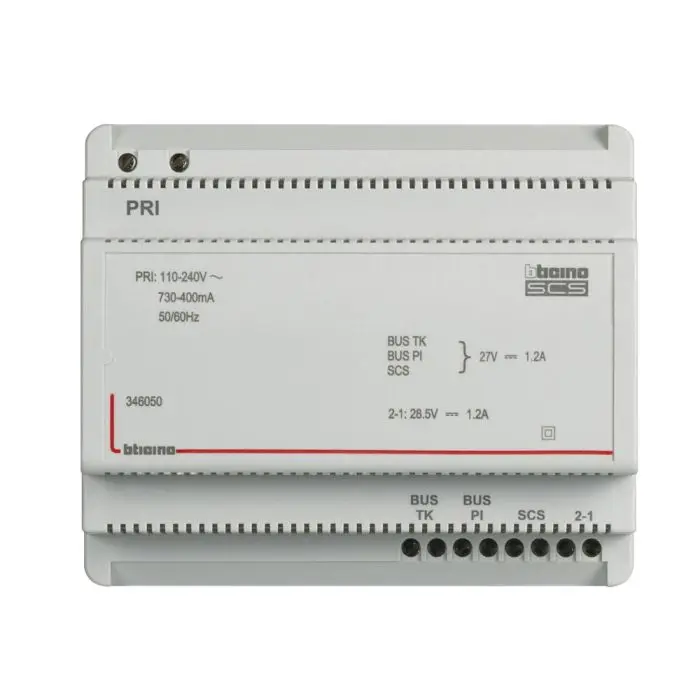

BTICINO 346050 BUS-SCS power supply for 2-wire audio and video systems

Name: BTICINO 346050 BUS-SCS power supply for 2-wire audio and video systems
Brand: BTICINO
SKU: 346050
Price: 138.72 EUR
Availability: OutOfStock

Out of stock

SKU: 346050

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Power supply for 2-wire audio and video systems in 6 DIN modular case. Power supply 110 - 240 Va.c. @ 50 – 60 Hz. It provides two very low safety voltage output supplies (one on the 3 terminals BUS TK, BUS PI and SCS, one on terminals 1 - 2); to be used alternately and NOT simultaneously. The video adapter is integrated in the device (article 346830 must therefore not be used), it is therefore possible to avoid the use of the A/V node (F441) or the multi-channel matrix (F441M) if from the BUS PI and BUS TK terminals a total of three branches are not exceeded (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK). It can also be used as a supplementary power supply (output 1 - 2) for the local power supply of the internal or external stations set up (in this case it is not possible to use any other output). The appliance is electronically protected against overload and short circuit. It is a SELV double insulation safety device. The installation must be carried out in accordance with current regulatory rules. The device does NOT need to be configured. ATTENTION: the outputs (PI BUS), (TK BUS) and (SCS) can be used simultaneously while respecting the maximum total absorption of 1.2 A. After overload or a short circuit, remove the power supply for 5 minutes.
