Box 1 PZ Shipping 24/48H

DAHUA PFWB5-30n CPe Radio Bridge Wi-fi 5g 15dBi, 300Mbps Outdoor Ip65 Security Surveillance

Name: DAHUA PFWB5-30n CPe Radio Bridge Wi-fi 5g 15dBi, 300Mbps Outdoor Ip65 Security Surveillance
Brand: DAHUA
SKU: PFWB5-30N
Price: 76.16 EUR
Availability: InStock

In stock

SKU: PFWB5-30N

Are you a Reseller? Register Here

Description

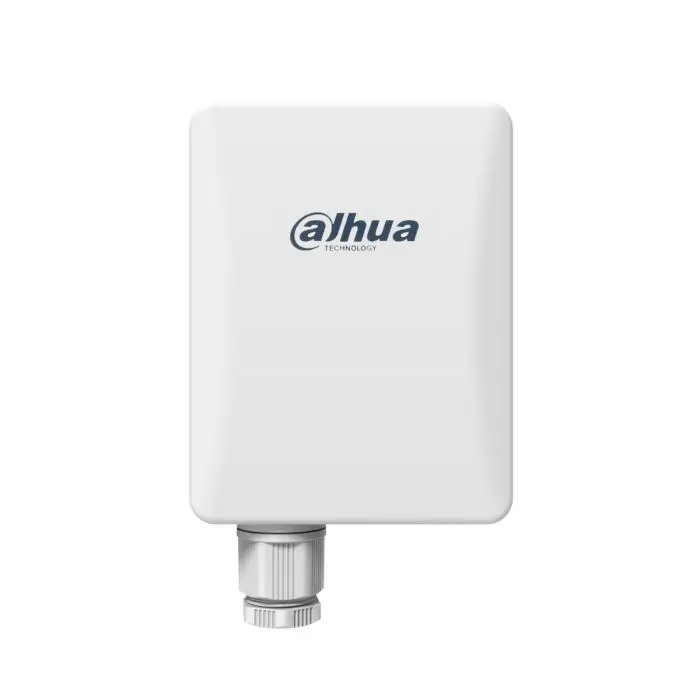

PFWB5-30n V-Radio Outdoor 11n 5G Wireless Bridge (CPE)

The V-Radio Outdoor 11n 5G Wireless Bridge (CPE) PFWB5-30n is designed to offer reliable, high-performance connectivity in outdoor environments. Here are its main features:

Powerful Signal : Thanks to its upgraded antenna, the point-to-point transmission distance can reach up to 3 km, ensuring a stable connection even over long distances.
Wide Operating Temperature Range : Operates effectively over a temperature range of –30°C to +70°C (–22°F to +158°F), making it suitable for use in extreme environments.
Easy Installation : Supports multiple mounting modes, including wall and pole mounting, for quick and easy installation.
High Protection : With an IP65 rating, it is weatherproof and suitable for outdoor environments, protecting it from dust and rain.
High Bandwidth : Offers bandwidth of up to 867 Mbps, ensuring delay-free transmission and optimal performance for your networking needs.

Data sheet

Category Detail

Hardware
Sold in pairs	Yes
Slot Function	1 × RJ-45 10/100/1000 Base-T
Diet	100 – 240 VAC
Energy Consumption	Maximum load: 4.5W
Memory	DDR 64MB
Spies	1 × PWR Light
	1 × LAN Light
	4 × RSSI LEDs
Performance
Standard Wireless	5 GHz: IEEE 802.11a/n
Operating Frequency	5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Speed	802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
	802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Channel Width	5/10/20/40 MHz
Maximum Output Power	CE EIRP: ≤23 dBm@5150-5250 MHz;
	≤23 dBm@5250-5350 MHz;
	≤27 dBm@5470-5725 MHz;
	≤14 dBm@5725-5850 MHz
	FCC output power: ≤24 dBm@5150-5250 MHz;
	≤24 dBm@5250-5350 MHz;
	≤24 dBm@5470-5725 MHz;
	≤30 dBm@5725-5850 MHz
Antenna Direction Angle	Horizontal: 30°, vertical: 30°
Transmission Distance	3000 m (9842.52 ft)
PoE	PoE In: 24V/0.5A
	PoE Out: NA
Function
Operative mode	AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless Client (ARPNAT)
Equipment Management	WEB
Encryption Mode	WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism	ACL; user isolation
OFDMA	Yes
MU-MIMO	2×2
DFS	Yes
DHCP	Yes
Firmware update	Web update
Software	DHCP Server; SNMP server; NTP Client; Router advertising demon; Ping watchdog
General
Operating Temperature	–30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature	–40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity	5%–95% (RH), non-condensing
Net weight	0.2kg (0.44lb)
Gross weight	0.4kg (0.88lb)
Product Dimensions	130 mm × 97 mm × 37 mm (5.11 × 3.81 × 1.45) (W × W × H)
Package Dimensions	174 mm × 135 mm × 80 mm (6.85 × 5.31 × 3.14) (W × D × H)
Protection	IP66
Installation	Bracket mounting
Certifications	THERE IS; FCC
Packing list	1 × Device;
	2 × Dowels;
	1 × Pole Mount Bracket;
	1 × Power Cable;
	1 × 24V PoE Adapter;
	1 × Quick Start Guide
