Out of stock
|
SKU: CS4006-4ET-60
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

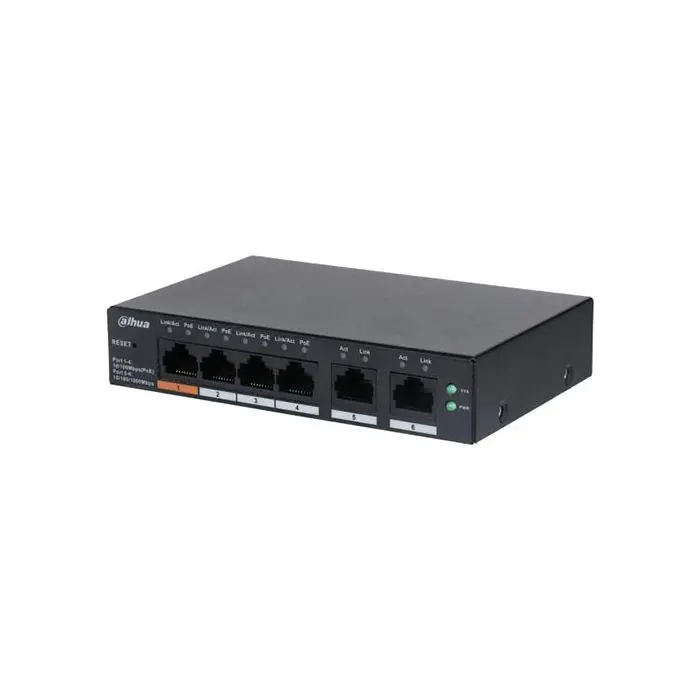

Dahua CS4006-4ET-60 Cloud Managed network switch is the ideal solution for managing local and cloud network infrastructures. Equipped with 6 ports, including 4 PoE at 10/100Mbps and 2 RJ-45 at 10/100/1000Mbps, it offers a maximum total power of 60W for the red port and supports transmissions up to 250 meters. This switch is perfect for small to medium sized environments such as offices, supermarkets, restaurants, bars and hotels. Thanks to the DoLynk Care platform, it is possible to manage the network remotely, monitoring and maintaining the network through topology visualization. The rugged, all-metal body design ensures better heat dissipation and reliable operation in temperatures ranging from -10°C to 55°C. The switch also offers advanced protection against overvoltage, overcurrent, static electricity, lightning and pulses, ensuring electromagnetic compatibility. Intelligent PoE support allows you to manage energy consumption with on and off control, while PoE Watchdog ensures stability and efficiency. The switch's orange port provides up to 60W, allowing extended power up to 250 meters. The DoLynk Care platform offers the ability to manage the network anytime, anywhere, with immediate push notifications in the event of faults, allowing you to identify and resolve problems remotely. The Dahua CS4006-4ET-60 Cloud Managed Switch simplifies network management, combining reliable performance and intuitive management for an efficient and secure network infrastructure.
Model | CS4006-4ET-60 |
Hardware | |
Power adapter included | YES |
PoE | YES |
Ethernet port | 4 |
Ethernet port speed | 10/100Mbps |
Ethernet port uplink speed | 10/100/1000Mbps |
Description of function slots | Ports 1-4: 4 × RJ-45 10/100 Mbit/s (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbit/s (uplink) |
Reset button | 1 |
Power supply | External Power: 53 VDC, 1,226 A |
operating temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating humidity | 5%–95% (RH), non-condensing |
Storage temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Storage humidity | 5%–95% (RH), non-condensing |
Energy consumption | At idle: ≤3W. Full load: 65W |
Performance | |
Layer | Layer 2 |
Type of management | YES |
Intelligently managed switch | YES |
MTBF | 232.62 years |
Switching capability | 4.8Gbps |
Packet forwarding speed | 3.57 Mpps |
Packet buffer size | 4 Mbit |
Huge frame | 9216 bytes |
MAC table size | 8 THOUSAND |
VLAN number | 32 |
Communication standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
Characteristic | |
PoE protocol | IEEE802.3af; IEEE802.3at; Hi-PoE |
PoE power supply | Port 1 ≤ 60W, Port 2-4 ≤ 30W, total ≤ 60W |
PoE power consumption management | YES |
PoE pin assignment | 1,2,4,5(V+),3,6,7,8(V-) |
Long distance PoE transmission | YES |
VLAN function | Port-based VLAN |
IEEE 802.3x flow control | YES |
DHCP function | DHCP client |
Equipment management | Web management; App management |
General | |
Static protection | Discharge in air: 8 kV; Contact discharge: 6 kV |
Lighting protection | Common mode: 4 kV; Differential mode: 2 kV |
Net weight | 0.28 kg (0.64 lb) |
Gross weight | 0.92 kg (2.02 lb) |
Product dimensions | 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H) |
Packing dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H) |
Casing material | Sheet metal |
Installation | Desktop mounting; WallMount |
SKU Padre | CS4006-4ET-60 |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
