In stock
|
SKU: HAC-B1A21P-U-0280B
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

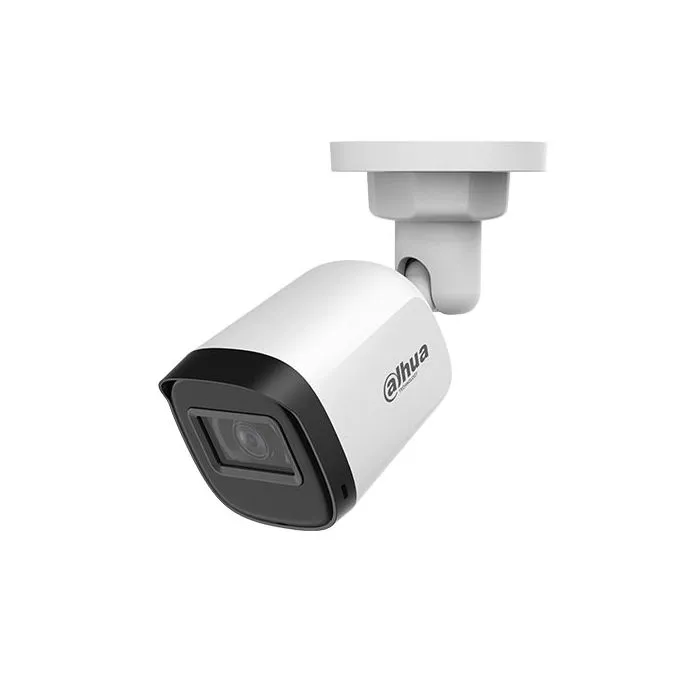

Dahua bullet camera is a versatile solution for video surveillance, compatible with four technologies switchable via OSD: HDCVI, HDTVI, AHD and analog. With a Full-HD resolution of 2MP (1920x1080p), it offers high-quality images thanks to the 2MP CMOS sensor and the fixed wide-angle 2.8 mm lens. Equipped with two Smart IR LEDs, it guarantees night vision up to 20 meters and includes advanced functions such as Day / Night (ICR), DWDR, BLC, HLC, 2DNR, Mirror and Privacy, ensuring clear images in any lighting conditions. The plastic body, with IP67 certification, is resistant to atmospheric agents and therefore suitable for outdoor use. It also has a 3AXIS support with internal cable passage for greater ease of installation.
Camera | |
Image Sensor | 2MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s;NTSC: 1/30 s–1/100,000 s |
Min. Illumination | 0.02 [email protected] (Color, 30 IRE)0.002 [email protected] (B/W, 30 IRE)0 lux (Illuminator on) |
Y/N Ratio | >65dB |
Illumination Distance | 30 m (98.43 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (IR light) |
Angle Adjustment | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
Lens | |
Lens Type | Fixed focal |
Lens Mount | M12 |
Focal Length | 2.8mm; 3.6mm; 6mm |
Max. Openings | F2.0 |
Field of View | 2.8mm: H: 100°; V: 54°; D: 117° |
Iris Control | Fixed |
Close Focus Distance | 2.8mm: 0.5m (1.64ft)3.6mm: 0.8m (2.62ft)6mm: 2.4m (7.87ft) |
Video | |
Video Frame Rate | CVI:PAL: 1080p@25fpsNTSC: 1080p@30fpsAHD:PAL: 1080p@25fpsNTSC: 1080p@30fpsTVI:PAL: 1080p@25fpsNTSC: 1080p@30fpsCVBS:PAL: 960HNTSC: 960H |
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto(ICR)/Color/B/W |
BLC | BLC; DWDR |
WDR | DWDR |
White Balance | Car |
Gain Control | Car |
Noise Reduction | 2D NR |
Illumination Mode | Smart IR |
Certification | |
Certifications | CE-LVD: EN 62368-1;CE-EMC: EN 55032; EN 55035 |
Port | |
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power | |
Power Supply | 12VDC ±30% |
Power Consumption | Max 2.8W (12VDC, IR on) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | <95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | <95% (RH), non-condensing |
Protection | IP67 |
Anti-corrosion Level | Basic Protection |
Structure | |
Casing Material | Plastic |
Product Dimensions | 146.1mm × 70.0mm × 69.8mm (5.75" × 2.76" × 2.75") |
Net Weight | 0.15 kg (0.33 lb) |
Gross Weight | 0.23 kg (0.51 lb) |
Installation | Wall mount; ceiling mount; vertical pole mount |
SKU Padre | HAC-B1A21P-U-0280B |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 2 year warranty |
Connectivity | wire |
telecamere_audio | No |
Camera Resolution | 2MP |
Lens | fixed lens |
Camera Type | Bullet |
Technology | Hybrid |
