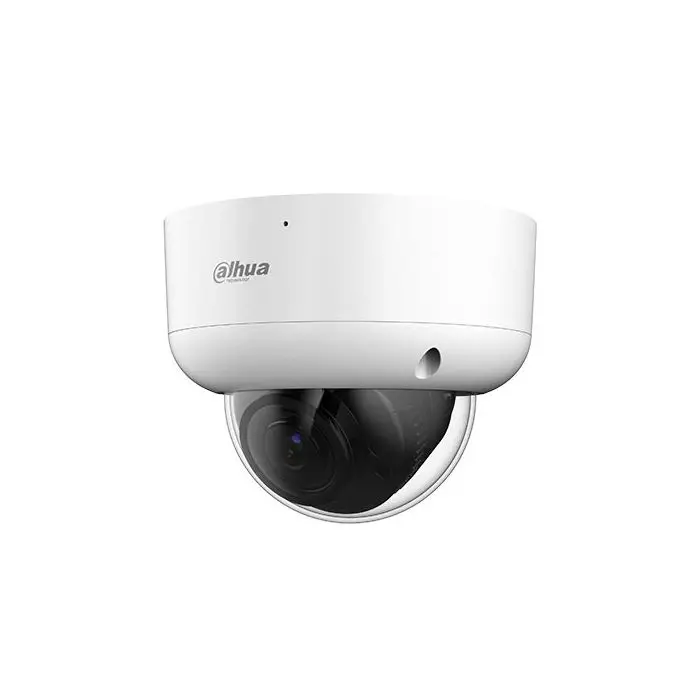

Dahua HAC-HDBW1200RA-Z-S6 anti-vandal dome hdcvi hybrid camera 4in1 full hd 2Mpx motozoom 2.7~12mm osd audio IP67 IK10

Name: Dahua HAC-HDBW1200RA-Z-S6 anti-vandal dome hdcvi hybrid camera 4in1 full hd 2Mpx motozoom 2.7~12mm osd audio IP67 IK10
Brand: DAHUA
SKU: HAC-HDBW1200RAP-Z-2712-S6
Price: 56.03 EUR
Availability: InStock

In stock

SKU: HAC-HDBW1200RAP-Z-2712-S6

This product will be shipped within 10 working days

Are you a Reseller? Register Here

Description

Dome Dahua anti-vandal camera sku. HAC-HDBW1200RA-Z-S6 S6 version is a versatile solution for video surveillance, capable of supporting four switchable technologies: HDCVI, HDTVI, AHD and analog. Equipped with a 2MP Full-HD 1920x1080p resolution, this camera offers high image quality thanks to the 2MP CMOS sensor and a 2.7-12mm motorized varifocal lens, although without autofocus. The device is equipped with three Smart IR LEDs that guarantee night vision up to 60 meters, and has advanced functions such as Day/Night (ICR), DWDR, BLC, HLC, 3DNR, Mirror and Privacy, which ensure quality of the Optimal image in different lighting conditions. The sturdy metal body offers IP67 protection for outdoor use and IK10 resistance against vandalism. This camera is ideal for outdoor surveillance systems, with a built-in microphone that adds audio functionality to video security.

Data sheet

Camera
Image sensor	2MP CMOS
Maximum. Resolution	1920 (H) × 1080 (V)
Scanning system	Progressive
Electronic shutter speed	PAL: 1/25 s–1/100000 s NTSC: 1/30s–1/100000s
minimum lighting	0.01 [email protected] (color, 30 IRE) 0.001 [email protected] (black and white, 30 IRE) 0 lux (illuminator on)
S/N ratio	>65dB
Lighting distance	60 m (196.85 ft)
Illuminator on/off control	Car
Illuminator number	3 (IR light)
Angle adjustment	Pan: 0°–355° Inclination: 0°–80° Rotation: 0°–355°
Lens
Lens type	Motorized varifocal
Auto focus	NO
Lens attachment	φ14
Focal length	2.7mm–12mm
Maximum. Opening	F1.6
Field of view	H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°
Iris control	Fixed
Close focusing distance	0.8 m (2.62 ft)
DORI Distance	Lens	Detect	To observe	Recognize	Identify
2.7mm	47.4 m (155.51 feet)	18.9 million (62.01 feet)	9.5 meters (31.17 feet)	4.7 million (15.42 feet)
12mm	155.6 m (510.50 feet)	62.2 m (204.07 feet)	31.1 m (102.03 feet)	15.6 million (51.18 feet)
video
Video frame rate	CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960H; NTSC: 960H
Resolution	1080p (1920×1080); 960H (960 × 576/960 × 480)
Day night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; DWDR
WDR	DWDR
White balance	Car; Area white balance
Gain control	Car
Noise reduction	3D No
Lighting modes	Intelligent IR
Mirror	YES
Privacy masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Brings
Video output	Video output choices of CVI/TVI/AHD/CVBS via a BNC port
Audio input	Built-in single-channel microphone
Power
Power supply	12VDC ±30%
Energy consumption	Max 4.1W (12V DC, IR on)
Environment
operating temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating humidity	<95% (RH), non-condensing
Storage temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage humidity	<95% (RH), non-condensing
Protection	IK10; IP67
Anti-corrosion level	Basic protection
Structure
Casing material	Metal
Product dimensions	φ126mm × 100mm (φ4.96" × 3.94")
Net weight	0.63 kg (1.38 lb)
Gross weight	0.81kg (1.78lbs)
Installation	WallMount; ceiling mounting; vertical pole support

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connectivity	wire
telecamere_audio	No
Camera Resolution	2MP
Lens	motorized
Camera Type	Dome
Technology	Hybrid
PoC	Not
