Box 1 PZ Shipping 24/48H

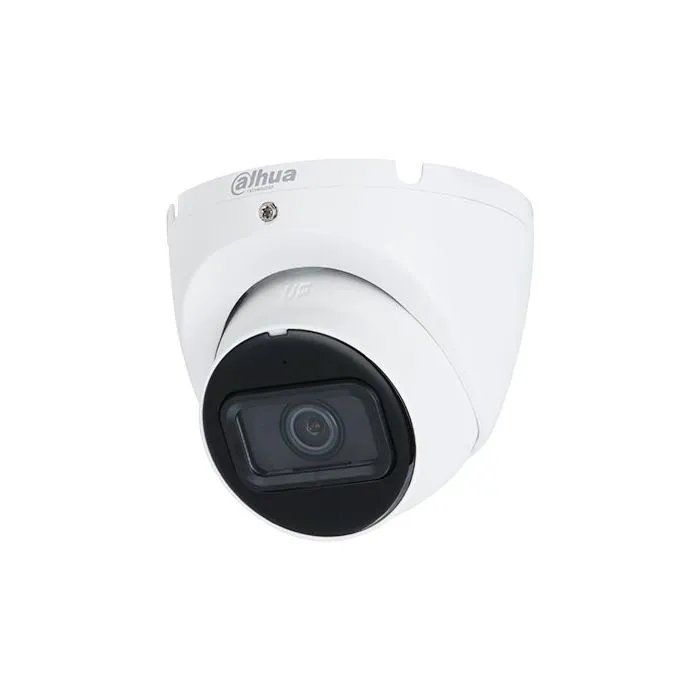

Dahua HAC-HDW1200T-S6 hybrid hdcvi dome eyeball camera 4in1 2Mp Full HD 2.8mm osd metal IP67

Name: Dahua HAC-HDW1200T-S6 hybrid hdcvi dome eyeball camera 4in1 2Mp Full HD 2.8mm osd metal IP67
Brand: DAHUA
SKU: HAC-HDW1200TLM-S6
Price: 32.62 EUR
Availability: InStock

In stock

SKU: HAC-HDW1200TLM-S6

Are you a Reseller? Register Here

Description

Dahua S6 Version HAC-HFW1200T outdoor surveillance camera offers high performance and versatility thanks to 4in1 technology, supporting HDCVI, HDTVI, AHD and TVI formats. With a Full HD 1080P resolution and a 2MP CMOS image sensor, it guarantees clear and detailed images. The 2.8mm lens ensures excellent visual quality, while the Smart IR illuminator with an infrared LED allows a clear view up to 30 meters even in low light conditions. The Day / Night function with ICR filter optimizes image performance in any environment. Made of metal and certified with IP67 protection, it is designed to withstand atmospheric agents, ensuring reliability and durability over time.

Data sheet

CCTV Camera
Image Sensor	2MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Min. Illumination	0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
Y/N Ratio	>65dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Car
Illuminator Number	1 (IR light)
Angle Adjustment	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed focal
Lens Mount	M12
Focal Length	2.8mm
Max. Openings	F2.0
Field of View	2.8mm: H: 102°; V: 60°; D: 129°
Iris Control	Fixed
Close Focus Distance	0.5 m (1.64 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
2.8mm	41.4 m (135.83 ft)	16.5 m (42.13 ft)	8.3 m ( 27.23 ft)	4.1 m (13.45 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Video Frame Rate	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; DWDR
WDR	DWDR
White Balance	Auto; White balance area
Gain Control	Car
Noise Reduction	3D NR
Illumination Mode	Smart IR
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	12VDC ±30%
Power Consumption	Max 3.2W (12VDC, IR on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Structure
Casing Material	Metal
Product Dimensions	Φ94.0 mm × 85.7 mm (Φ3.70" × 3.37")
Net Weight	0.33 kg (0.73 lb)
Gross Weight	0.47 kg (1.04 lb)
Installation	Wall mount; ceiling mount; vertical pole mount

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connectivity	wire
telecamere_audio	No
Camera Resolution	2MP
Lens	fixed lens
Camera Type	Dome
Technology	Hybrid
PoC	Not
