In stock
|
SKU: HAC-T1A51P-U-0280B-S2
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

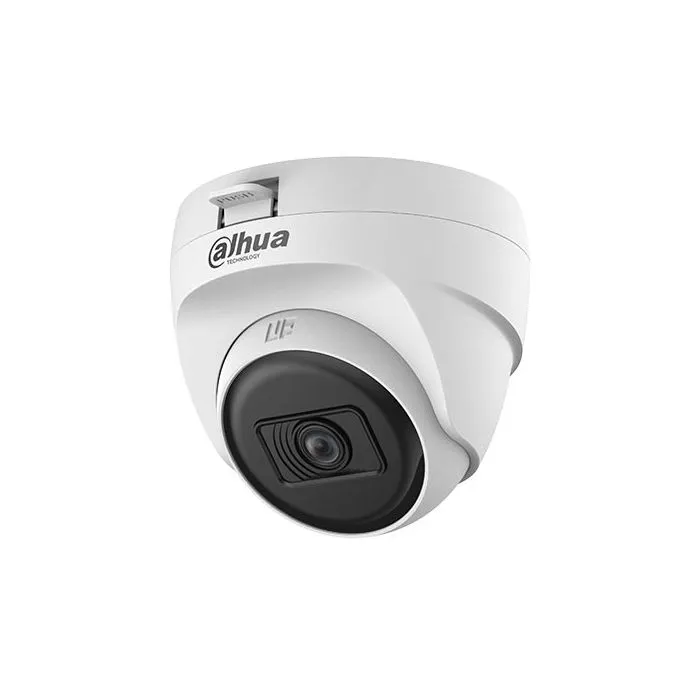

Eyeball Mini dome camera is a versatile solution for video surveillance, compatible with four technologies switchable via OSD: HDCVI, HDTVI, AHD and analog. With a resolution of 5MP (2880x1620p), it offers high quality images thanks to the 5MP CMOS sensor and the 2.8mm fixed wide-angle lens. Equipped with two Smart IR LEDs, it guarantees night vision up to 25 meters and includes advanced functions such as Day / Night (ICR), DWDR, BLC, HLC, 2DNR, Mirror and Privacy, ensuring clear and detailed images in any lighting condition. The plastic structure is designed for installations exclusively in indoor environments.
| Camera | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s;NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.02 [email protected] (Color, 30 IRE)0.002 [email protected] (B/W, 30 IRE)0 lux (Illuminator on) |
| Y/N Ratio | >65dB |
| Illumination Distance | 25 m (82.02 ft) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR light) |
| Angle Adjustment | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Openings | F2.0 |
| Field of View | 2.8mm: H: 106°; V: 56°; D: 125° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8mm: 1.0m (3.28ft) |
| Video | |
| Video Frame Rate | CVI:PAL: 5M@25fps; [email protected]; 4M@25fps; 1080P@25fpsNTSC: 5M@25fps; 5M@10fps; 4M@30fps; 1080P@30fpsAHD:PAL: 4M@25fps;NTSC: 4M@30fpsTVI:PAL: 4M@25fps;NTSC: 4M@30fpsCVBS:PAL: 960H;NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto;White balance area |
| Gain Control | Auto;Manual |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications | CE-LVD: EN 62368-1;CE-EMC: EN 55032; EN 55035 |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12VDC ±30% |
| Power Consumption | Max 2.7W (12VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04") |
| Net Weight | 0.11 kg (0.24 lb) |
| Gross Weight | 0.12 kg (0.26 lb) |
| Installation | Wall mount; ceiling mount |
| Ean | Non Applicabile |
|---|---|
| Shipping | Shipping 24/48H |
| Warranty | 3 years warranty |
| Connectivity | wire |
| telecamere_audio | No |
| Camera Resolution | 5MP |
| Lens | fixed lens |
| Camera Type | Dome |
| Technology | Hybrid |
