In stock
|
SKU: HAC-T2A21P-U-0280B
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

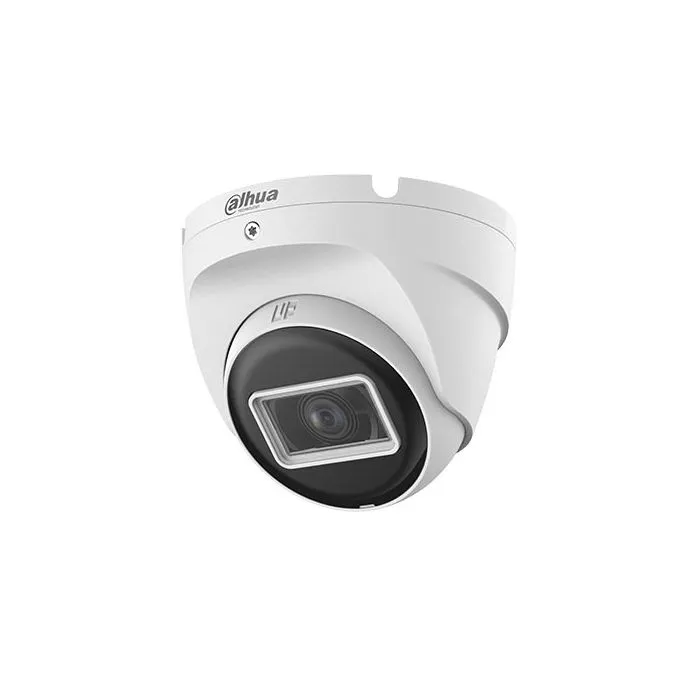

Eyeball dome camera represents a versatile solution for video surveillance, compatible with four switchable technologies: HDCVI, HDTVI, AHD and analog (switching via OSD). With a Full-HD resolution of 2MP (1920x1080p), this camera offers high-quality images thanks to the 2MP CMOS sensor and the 2.8 mm wide-angle fixed lens. It is equipped with two Smart IR LEDs that guarantee night vision up to 20 meters and advanced functions such as Day / Night (ICR), DWDR, BLC, HLC, 2DNR, Mirror and Privacy, for excellent image quality in any lighting condition. The robust metal body, certified IP67, ensures resistance to atmospheric agents for outdoor use.
Camera | |
Image sensor | 2MP CMOS sensor |
Maximum resolution | 1920 (height) × 1080 (back) |
Scanning system | Progressive |
Electronic shutter speed | PAL: 1/25 s–1/100000 s;NTSC: 1/30 s–1/100000 s |
Minimum lighting | 0.02 [email protected] (Color, 30 IRE)0.002 [email protected] (B/W, 30 IRE)0 lux (Illuminator on) |
Signal to noise ratio | >65dB |
Illumination distance | 30 meters (98.43 feet) |
Illuminator on/off control | Auto;Manual |
Illuminator number | 2 (IR light) |
Angle adjustment | Overview: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
Lens | |
Lens type | Fixed focal length |
Lens mount | M12 |
Focal length | 2.8mm; 3.6mm; 6 millimeters |
Maximum opening | F2.0 |
Field of view | 2.8mm: H: 100°; V: 54°; D: 117° |
Iris control | Fixed |
Close focusing distance | 2.8mm: 0.5m (1.64ft) |
Video | |
Video Frame Rate | CVI:PAL: 1080p @ 25fpsResolution: 1080p @ 30fpsAHD:PAL: 1080p @ 25fpsResolution: 1080p @ 30fpsTVI:PAL: 1080p @ 25fpsResolution: 1080p @ 30fpsCVBS Code:Format: 960HFormat: 960H |
Resolution | Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto(ICR)/Color/B/W |
BLC | BLC; DWDR |
WDR | DWDR |
White balance | Car |
Get control | Car |
Noise reduction | 2D NR |
Lighting modes | Smart IR |
Certification | |
Certifications | CE-LVD: EN 62368-1;CE-EMC: EN 55032; EN 55035 |
Port | |
Video output | CVI/TVI/AHD/CVBS video output choices via a BNC port |
Energy | |
Power supply | 12VDC ±30% |
Energy consumption | Max 2.8W (12VDC, IR on) |
Environment | |
Operating temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating humidity | <95% (RH), non-condensing |
Storage temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage humidity | <95% (RH), non-condensing |
Protection | IP67 protection grade |
Anti-corrosion level | Basic protection |
Structure | |
Casing material | Metal |
Product dimensions | Dimensions: 94.0 mm × 77.9 mm (3.70" × 3.07") |
Net weight | 0.27 kg (0.60 lbs) |
Gross weight | 0.33 kg (0.73 lbs) |
Installation | Wall mount; Ceiling mount; Vertical pole mount |
SKU Padre | HAC-T2A21-U |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 3 years warranty |
Connectivity | wire |
telecamere_audio | No |
Camera Resolution | 2MP |
Lens | fixed lens |
Camera Type | Dome |
Technology | Hybrid |
