SKU: HAC-T3A51P-Z-2712-S2
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

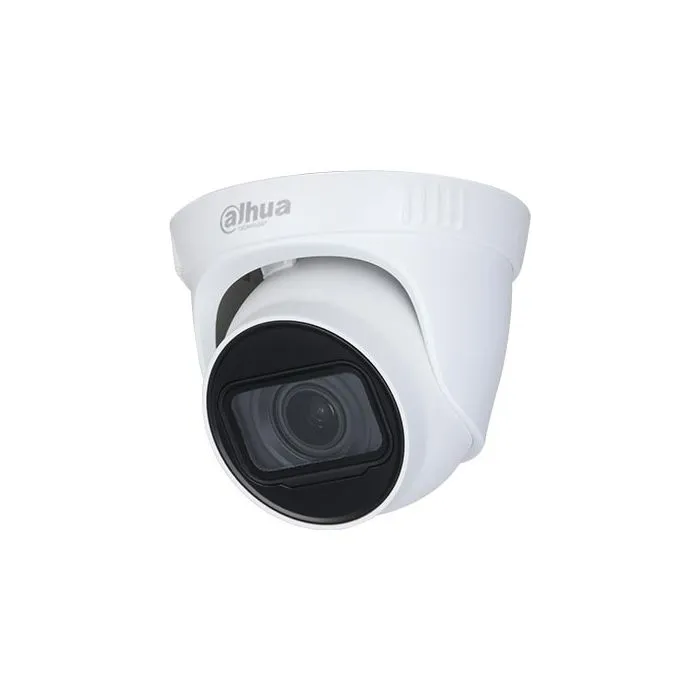

Eyeball dome camera is a versatile solution for video surveillance, compatible with four technologies switchable via OSD: HDCVI, HDTVI, AHD and analog. With a resolution of 5MP (2880x1620p), it offers high quality images thanks to the 5MP CMOS sensor and the 2.7-12mm motorized varifocal lens. Equipped with two Smart IR LEDs, it guarantees night vision up to 40 meters and includes advanced functions such as Day / Night (ICR), DWDR, BLC, HLC, 2DNR, Mirror and Privacy, ensuring clear and detailed images in any lighting condition. The plastic structure, certified IP67, ensures resistance to atmospheric agents for outdoor use.
Camera | |
Image sensor | 1/2.7 inch CMOS |
Maximum resolution | 2880 (height) × 1620 (vertical) |
Pixel | 5MP |
Scanning system | Progressive |
Electronic shutter speed | PAL: 1/25 s–1/100000 sNTSC: 1/30 s–1/100000 s |
Signal to noise ratio | > 65 dB |
Minimum lighting | 0.01Lux/F1.6; 30IRE; 0 Lux IR on |
Illumination distance | 40 meters (131.2 feet) |
Illuminator on/off control | Automatic; manual |
Illuminator number | 2 |
Rotation/Tilt/Pan Range | Overview: 0°–360°Tilt: 0°–78°Rotation: 0°–360° |
Lens | |
Lens type | Motorized vari-focal |
Auto focus | N/A |
Mounting type | Φ14 |
Focal length | From 2.7mm to 12mm |
Maximum opening | F1.6 |
Field of view | Diagonal: 39°–130°Horizontal: 34°–107°Vertical: 19°–55° |
Iris type | Fixed iris |
Close focusing distance | 0.5 m (1.64 ft) |
Video | |
Frame rate | CVI:PAL: 5M at 25fps; 4M at 25fps; 1080P at 25fpsNTSC: 5M at 25fps; 4M at 30fps; 1080P at 30fpsAHD:PAL: 4M@25fpsNTSC: 4M @ 30fpsTVI:PAL: 4M@25fpsNTSC: 4M @ 30fpsCVBS Code:Format: 960HFormat: 960H |
Resolution | 5M (2880×1620); 4M (2560×1440); 1080p (1920×1080); 960H (960 × 576/960 × 480) |
Day/Night | ICR circuit breaker |
BLC | BLC/HLC/DWDR |
WDR | DWDR |
White balance | Automatic; manual |
Get control | Automatic; manual |
Noise reduction | 2D NR |
Smart IR | YES |
Mirror | Off/On |
Privacy Masking | Off/On (8 areas; rectangle) |
Certifications | |
Certifications | CE (EN55032:2015, EN61000-3-2:2014,EN61000-3-3:2013, EN55024:2010+A1:2015,EN55035:2017, EN50130-4:2011+A1:2014,(EN62368-1:2014+A11:2017)FCC (47 CFR FCC Part 15 subpart B, ANSI C63.4-2014) |
Port | |
Video output | CVI/TVI/AHD/CVBS video output choices via a BNC port |
Energy | |
Power supply | DC 12V ±30% |
Energy consumption | Max 6.6W (12V DC, IR on) |
Environment | |
Operating temperature | –30°C to +60°C (–22°F to +140°F)< 95% (non-condensing) |
Storage temperature | –30°C to +60°C (–22°F to +140°F)< 95% (non-condensing) |
Degree of protection | IP67 protection grade |
Structure | |
Coating | Plastic dome cover + metal top cover + plastic bottom cover - Dome |
Camera dimensions | Φ122mm × 106.2mm (Φ4.80" × 4.18") |
Net weight | 0.38 kg (0.84 lbs) |
Gross weight | 0.51 kg (1.12 lbs) |
Ean | Non Applicabile |
---|---|
Shipping | Shipping 24/48H |
Warranty | 3 years warranty |
telecamere_audio | No |
