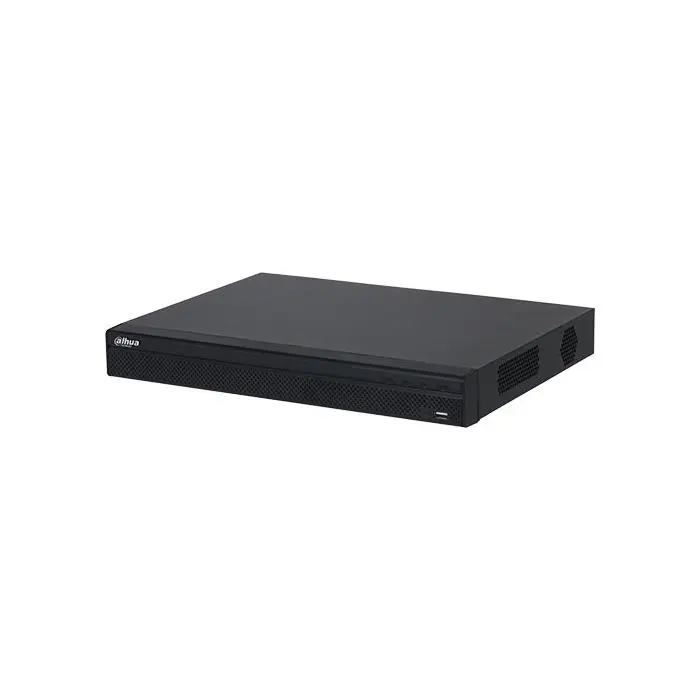

Dahua NVR4216-4KS3 Lite Series 16CH Ultra-hd 4K @12mp HDMI/VGA 160Mbps 1U 2HDDs smd plus face detection Onvif h.265+ p2p alarm

Name: Dahua NVR4216-4KS3 Lite Series 16CH Ultra-hd 4K @12mp HDMI/VGA 160Mbps 1U 2HDDs smd plus face detection Onvif h.265+ p2p alarm
Brand: DAHUA
SKU: NVR4216-4KS3
Price: 200.19 EUR
Availability: InStock

In stock

SKU: NVR4216-4KS3

Are you a Reseller? Register Here

Description

The new series of Dahua 4K Ultra HD Professional IP NVRs offers exceptional performance with 16 IP channels that support resolutions up to 12MP. These NVRs use H.265+ video compression for greater bandwidth and storage efficiency, and support up to 160Mbps input bandwidth. Equipped with HDMI (4K) and VGA outputs, they are compatible with the Onvif standard and can accommodate up to 20 TB of storage on 2 SATA HDDs. With 2 USB ports and Cloud P2P support, they ensure secure remote access and connectivity. Advanced video analytics features enhance monitoring and security capabilities. Heatmap technology visualizes crowd density and busiest areas, useful for behavioral analytics and safety improvements. Facial detection and recognition allow you to identify and monitor specific individuals, increasing the level of security. Precise people counting enables real-time visitor flow monitoring and capacity management. (NOTE! These functions must be supported by the Dahua IP cameras installed on the system). Alarm and audio inputs and outputs ensure timely response to security events, making these NVRs ideal for applications in urban environments, transportation, education and finance.

Data sheet

Model	NVR4216-4KS3
SYSTEM
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operation Interface	Web, Local GUI
AI
AI by Recorder	SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels)	6 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels)	6 channels
SMD Plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	6 channels
Audio and Video
Access Channel	16 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access	Android; iOS
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome; IE; Safari; Edge; Firefox
Record Playback
Multi-channel Playback	Up to 16 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm	Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage	Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
External Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels (1-channel 12 V 1 A output)
Disk Interface	2 SATA III ports, up to 20 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply	12 V DC, 4 A
Power Consumption	Total output of NVR is <10 W(without HDD)
Net Weight	1.49 kg (3.28 lb)
Gross Weight	2.77 kg (6.11 lb)
Product Dimensions	375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
Package Dimensions	433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
Operating Conditions	–10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Installatio	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

More Information

SKU Padre	NVR4216-4KS3
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
SSD	No
Bit rate	160 Mbps
Channel Recorders	16
Recorders Resolution	4K
Technology	IPC
