In stock
|
SKU: PFM320D-015
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

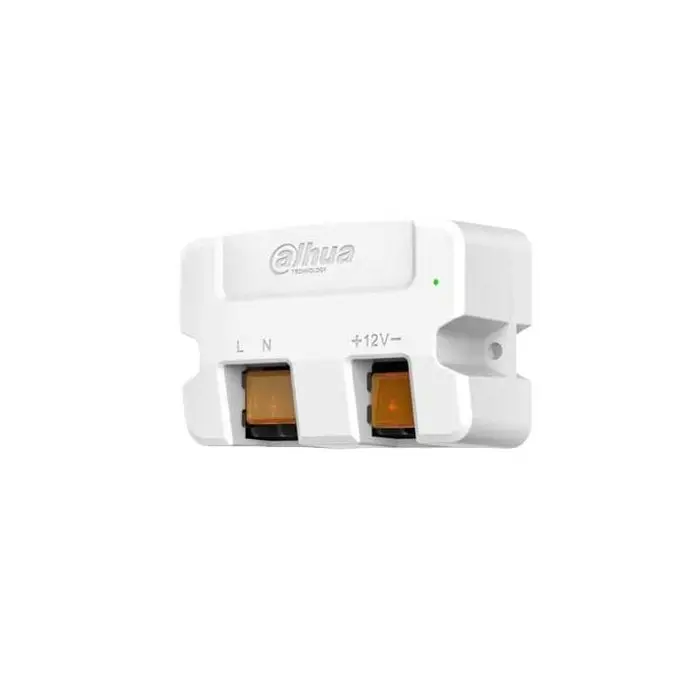

Switching power supply with input 90 ~ 220V with clamp and output stabilized at 12Vdc maximum load 1.5A Dahua PFM320D-015
Features
Electrical Specification | |
Rated input | AC100~240V, 50/60Hz, 0.6A |
Output voltage | DC12V (+7%, -3%) |
Output current | Max. 1.5A (+70℃) |
Protection/Environmental | |
Protection | Surge protection, over temperature protection, over current, voltage load protection |
ESD: EN61000-4-2 +/-6kV Contact; +/-8kV Air | |
Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV(12 ohms) Differential Mode ±2kV(2 ohms) | |
Working temperature | -30℃~+70℃(-22℉~+158℉) |
Working humidity | 5%~95% RH |
Physical Properties | |
Weight | 95g(0.21lb) |
Dimension(LxWxH) | 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“) |
Installation | Plane installation, can be installed in junction boxes and wall mount brackets |
Color | White |
Input plug | 2-pin plug(L/N) |
Output plug | 2-pin plug(+12V-) |
Safety Standards | |
Certification | CE, FCC |
Shipping | Shipping 24/48H |
---|---|
Colore | White |
Warranty | 3 years warranty |
Ean | 818279633955 |
Smart home | No |
