Box 1 PZ Shipping 10 days

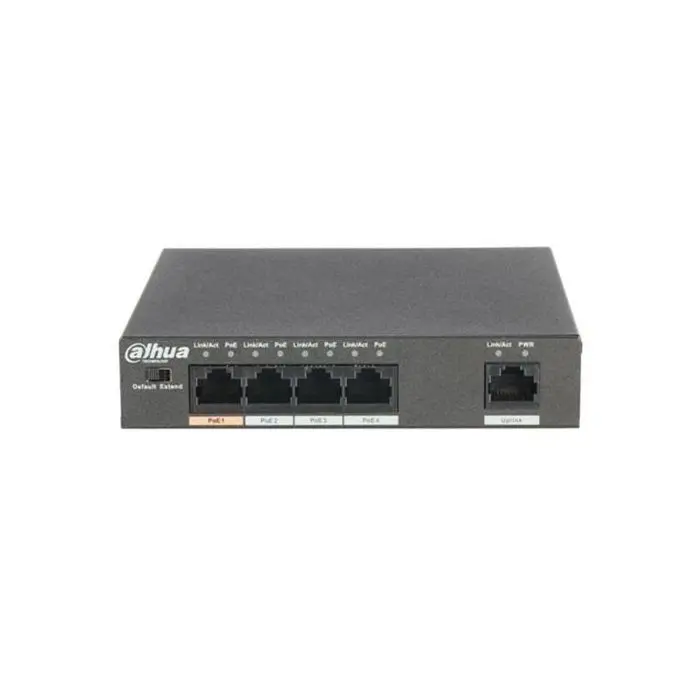

Dahua PFS3005-4ET-60 Switch 3 Ports PoE + 1 Port Hi-PoE + 1 Port 10/100Mbps 60W

Name: Dahua PFS3005-4ET-60 Switch 3 Ports PoE + 1 Port Hi-PoE + 1 Port 10/100Mbps 60W
Brand: DAHUA
SKU: PFS3005-4ET-60-V2
Price: 48.92 EUR
Availability: InStock

In stock

SKU: PFS3005-4ET-60-V2

This product will be shipped within 10 working days

Are you a Reseller? Register Here

Description

DH-PFS3005-4ET-60 is a layer two fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4*10/100Mbps PoE ports and 1*100 Mbps uplink ports. In order to acquire smooth monitoring, it’s recommended to connect max 4 IP cameras at a bit rate of less than 4Mbps respectively.

Features

Layer two commercial switch
Supports PoE power management
Supports wall-mount installation
Supports anti-theft lock hole
MAC auto learning and aging, MAC address capacity is 1K
Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
RJ45 port supports 10/100Mbps self-adaptation
Supports 250 meters long distance PoE transmission
Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

Data sheet

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at Management via WWW / console: No LAN ports: 1 x RJ45 10/100 Base-T - Uplink, 4 x 10/100 Base-T ( 1 x Hi-PoE + 3 x PoE (802.3af/at) ) Transmission method: Store and Forward LED diodes: Power, Speed, PoE, Link/Act Transmission speed: 10 / 100 Mb/s : 1 Port LAN + 4 LAN & PoE ports Maximal total power: 60 W MAC addresses table: 2k - Auto update of MAC addresses table Operation modes: Extend On : 250 m, 10 Mb/s @ UTP cat. 5e, 6 Extend Off : 100 m, 100 Mb/s @ UTP cat. 5e, 6 Certificates: CE Power supply: 53 V DC / 1.13 A (power adapter included) Weight: 0.28 kg Dimensions: 130 x 85 x 26 mm Manufacturer / Brand: DAHUA
