In stock
|
SKU: DH-SD42216DB-HC
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

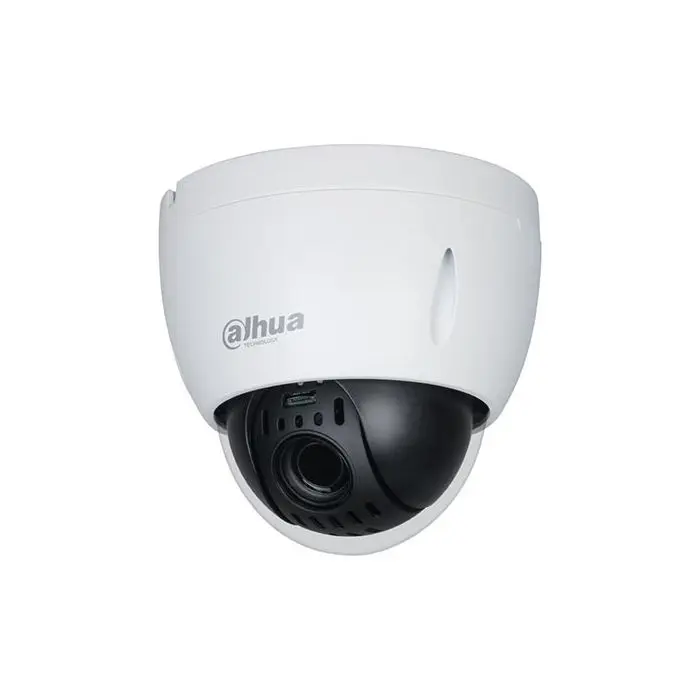

HDCVI PTZ dome camera Dahua sku. SD42216DB-HC, with 2 megapixel Sony STARVIS CMOS sensor, offers high quality images in FULL HD high resolution at 1080P. It has a motorized lens with 16X optical zoom (5-80 mm) and variable viewing angle. Starlight technology ensures clarity in low light conditions. Equipped with removable mechanical filter, 16X digital zoom and various image modes. Different picture modes, such as BLC, HLC, WDR 120dB, 2D/3D-NR and Digital Defog, together with the eight-mode adjustable white balance, further improve video quality. It supports 360° continuous rotation, with speeds up to 300°/sec and up to 300 presets. Compatible with DH-SD and Pelco-D/P protocols, it has an audio input, 2 alarm inputs and 1 alarm output. Weatherproof (IP66) and vandal-proof (IK10), it is supplied with power supply included.
Camera | ||||
Image sensor | 1/2.8 inch CMOS | |||
Pixels | 2MP | |||
Maximum. Resolution | 1920 (H) × 1080 (V) | |||
rom | 128MB | |||
RAM | 256MB | |||
Electronic shutter speed | 1/3 s–1/30,000 s | |||
Scanning system | Progressive | |||
minimum lighting | 0.005 [email protected] (color, 30 IRE); 0.0005 [email protected] (black and white, 30 IRE) | |||
Lens | ||||
Focal length | 5-80 mm | |||
Maximum. Opening | F1.6–F2.8 | |||
Field of view | O: 59.6°–5.4°; V: 34.6°–3.0°; D: 67.3°–6.2° | |||
Optical zoom | 16x | |||
Focus control | Car; semi-automatic; Manual | |||
Close focusing distance | 1 m–1.5 m (3.28 ft–4.92 ft) | |||
Iris control | Car; Manual | |||
DORI Distance | Detect | To observe | Recognize | Identify |
1,103.4 m (3,620.24 ft) | 435.9 m (1429.99 ft) | 220.7 million (724.05 feet) | 110.3 m (362.02 ft) | |
PTZ | ||||
Pan/tilt range | Pan: 0° to 360° endless; Tilt: 0° to +90°, automatic rotation of 180° | |||
Manual control speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s | |||
Preset speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s | |||
Preset | 300 | |||
Tours | 8 (up to 32 presets per tour) | |||
Model | 5 | |||
Scan | 5 | |||
Turning off the memory | YES | |||
Movement at minimum | Model; Preset; Scan; Tours | |||
PTZ protocol | DH-SD Pelco-P/D (automatic recognition) | |||
video | ||||
Resolution | 1080p (1920×1080); 720p (1280×720); D1 (704×576/704×480) | |||
Video frame rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) | |||
Day night | YES | |||
BLC | YES | |||
WDR | 120dB | |||
HLC | YES | |||
White balance | Car; internal; outdoors; tracking; Manual; sodium lamp; natural light; Street lamp | |||
Gain control | Car; Manual | |||
Noise reduction | 2DNR; 3D No | |||
Demisting | Electronic | |||
Digital zoom | 16x | |||
Image rotation | 180° | |||
Privacy masking | YES | |||
S/N ratio | ≥ 50dB | |||
Function | ||||
CVI product output mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) | |||
Certification | ||||
Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part 15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, N.60950-1 | |||
Brings | ||||
Analog output | 1 channel (CVBS/CVI, BNC output) | |||
RS-485 | 1 (baud rate range: 1200 bps–9600 bps) | |||
Audio input | 1 channel (LINE IN, bare cable) | |||
Alarm input | 2 (on-off value input: 0–5 V DC) | |||
Alarm output | 1 | |||
Connection of alarms | Scan; tours; model; preset; digital alarm output | |||
Alarm event | Alarm input | |||
Power | ||||
Power supply | 12V DC, 3A ±10% | |||
Energy consumption | Basic: 8W Maximum: 12W (PTZ) | |||
Environment | ||||
operating temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |||
Operating humidity | ≤ 95% | |||
Protection | IK10; TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection | |||
Structure | ||||
Product dimensions | 154.9mm × Φ170.4mm (6.10" × Φ6.71") | |||
Net weight | 1.8kg (3.97lbs) | |||
Gross weight | 3.3kg (7.28lbs) |
SKU Padre | DH-SD42216DB-HC |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 3 years warranty |
Connectivity | wire |
telecamere_audio | No |
Camera Resolution | 2MP |
Lens | motorized |
Camera Type | Dome |
Technology | HDCVI |
PoC | Not |
Tecnologia colore | STARLIGHT |
