Out of stock
|
SKU: DH-SD49225DB-HC
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

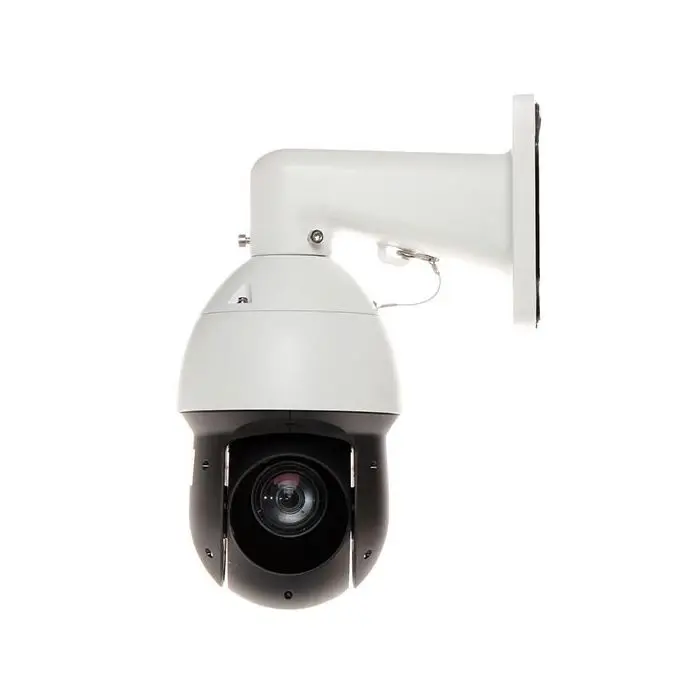

The outdoor HDCVI PTZ camera from Dahua. The SD49225DB-HC offers a resolution of 2 MP 1080P FULL HD and thus enables high-quality surveillance. Equipped with a powerful 25x optical zoom and a 4.8-120mm varifocal lens, this camera uses a 1/2.8" STARVIS™ CMOS sensor with Starlight technology, which ensures clear images even in low light conditions. The 6-LED IR illuminator ensures an illumination distance of up to 100 meters for optimal visibility both day and night. Advanced features include Backlight Compensation (BLC), Highlight Compensation (HLC) and Wide Dynamic Range (WDR) technology, which variably improve image quality. The camera has 1 audio input and 1 output, as well as 2 alarm inputs and 1 output, which enables effective management of alarm events in outdoor environments. The camera has IP66 protection against dust and water and TVS6000 protection against lightning strikes. Reliability and durability over time make it the ideal choice for robust and high-quality outdoor surveillance.
Image sensor | 1/2.8" CMOS | |||
pixel | 2MP | |||
Maximum resolution | 1920 (H) × 1080 (V) | |||
Rome | 128MB | |||
R.A.M. | 256MB | |||
Electronic shutter speed | 1/3s–1/30,000s | |||
Scanning system | Progressive | |||
Min. lighting | 0.005 lux at F1.6 (color, 30 IRE); 0.0005 lux at F1.6 (B/W, 30 IRE) 0 Lux (IR light) | |||
Lighting distance | 100m (IR) | |||
On/off control of lighting | Prio Zoom; Manual | |||
Illuminator number | 6 (IR) | |||
lens | ||||
Focal length | 4.8mm–120mm | |||
Max. openings | F1.6–F3.5 | |||
Field of view | H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° | |||
Optical zoom | 25× | |||
Focus control | Auto; Semi-automatic; Manual | |||
Close focus distance | 0.1 m–2 m (0.33 ft–6.56 ft) | |||
Iris control | Car; Manual | |||
DORI distance | Recognize | Observe | Recognize | Identify |
1655.2 m (5430.45 feet) | 653.8 m (2145.01 feet) | 331.0 m (1085.96 feet) | 165.5 m (542.98 feet) | |
PTZ | ||||
Pan/tilt range | Panning: 0° to 360° endless; Tilt: –15° to +90°, automatic rotation by 180° | |||
Manual control speed | Panning: 0.1°–200°/s Tilt: 0.1°–120°/s | |||
Preset speed | Pan: 240°/s; Inclination: 200°/s | |||
Preferences | 300 | |||
Tours | 8 (up to 32 presets per tour) | |||
Pattern | 5 | |||
scan | 5 | |||
Power-off memory | Yes | |||
Idle movement | pattern;preset;scan;tour | |||
PTZ protocol | DH-SD Pelco-P/D (Auto-detect) | |||
Video | ||||
resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) | |||
Video frame rate | 1080p (25/30fps); 720p (25/30/50/60fps) | |||
day Night | Yes | |||
BLC | Yes | |||
WDR | 120dB | |||
HLC | Yes | |||
White balance | car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | |||
Gain control | Car; Manual | |||
Noise reduction | 2DNR; 3DNR | |||
Defogging | Electronic | |||
Digital zoom | 16× | |||
Image rotation | 180° | |||
Privacy masking | Yes | |||
S/N ratio | ≥50dB | |||
function | ||||
CVI Product Output Mode | TVI;CVI;CVBS;AHD(CVBS is used for debugging only) | |||
Certification | ||||
Certifications | EN55032/EN55024/EN50130-4 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No. 60950-1 | |||
Harbor | ||||
Analog output | 1 channel (CVBS/CVI output, BNC) | |||
RS-485 | 1 (Baud rate range: 1200 bps–9600 bps) | |||
Audio input | 1 channel (LINE IN, bare wire) | |||
Alarm input | 2 (On-Off value input: 0–5 VDC) | |||
Alarm output | 1 | |||
Alarm link | Scan; Presets; Tours; Pattern; Alarm digital output | |||
Alarm event | Alarm input | |||
Performance | ||||
Power supply | 12VDC, 3A ± 10% | |||
power consumption | Basic: 10 W Max.: 22 W (PTZ + lighting + heating) | |||
Environment | ||||
operating temperatur | -40 °C to +70 °C (-40 °F to +158 °F) | |||
Operating humidity | ≤95% | |||
Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection | |||
structure | ||||
Product dimensions | 269.9mm × Φ160.0mm (10.63" × Φ6.30") | |||
Net weight | 3.0 kg (6.61 lbs) | |||
Gross weight | 4.2 kg (9.26 lbs) |
Ean | Non Applicabile |
---|---|
Shipping | Shipping 24/48H |
Warranty | 3 years warranty |
Connectivity | wire |
telecamere_audio | No |
Camera Resolution | 2MP |
Lens | motorized |
Camera Type | PTZ |
Technology | HDCVI |
PoC | Not |
Tecnologia colore | STARLIGHT |
