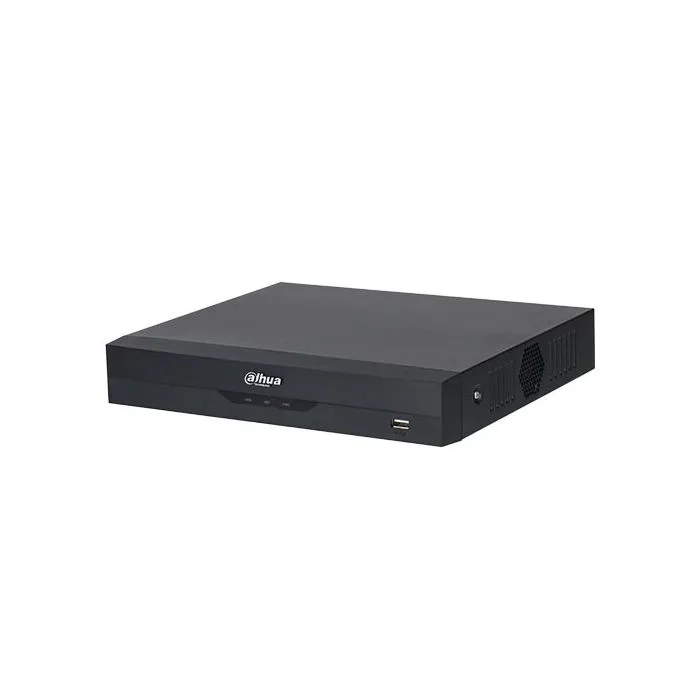

Dahua XVR4108HS-I V2.0 pro series AI 1U WizSense penta-brid 1080N/720P 8CH 5IN1 p2p smd plus ivs AI Coding H.265+

Name: Dahua XVR4108HS-I V2.0 pro series AI 1U WizSense penta-brid 1080N/720P 8CH 5IN1 p2p smd plus ivs AI Coding H.265+
Brand: DAHUA
SKU: XVR4108HS-I(V2.0)
Price: 85.62 EUR
Availability: OutOfStock

Out of stock

SKU: XVR4108HS-I(V2.0)

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Dahua XVR Video Recorder sku. XVR4108HS-I Hardware Version 2.0 is a video surveillance system solution, designed to offer superior performance and excellent versatility. It supports up to 8 channels and integrates 5 technologies in 1: HDCVI, AHD, TVI, CVBS and IP. Thanks to H.265+ compression with AI Coding, it ensures efficient management of video data. Equipped with HDMI and VGA ports for high definition output up to 1080p, it also offers USB 2.0 connectivity for easy data transfer. Advanced video recording system with 8 SMD Plus channels for analog channels, allowing the device to accurately trigger for humans and vehicles. The device supports 1 SATA HDD up to 16TB and RCA audio 1 input / 1 output two-way. Supports up to 10 IP camera inputs, each up to 6MP, and can manage up to 128 users at the same time. The incoming bandwidth reaches 32 Mbps. Data transmission is effective even at long distances, up to 1,200 meters at 720p resolution. It is the ideal choice for those looking for a robust and advanced DVR for the control and management of complex video surveillance systems.

Data sheet

System
Main Processor	Industrial grade processor
Operating System	Embedded Linux
Operating Interface	Web; Local GUI
SMD Plus
SMD Plus by Recorder	8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input	8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input	1. CVI: 1080p@25/30fps; 720p@25/30fps. 2. TVI: 1080p@25/30fps; 720p@25/30fps. 3. AHD: 1080p@25/30fps; 720p@25/30fps.
IP Camera Input	Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capability	Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps)
Dual stream	Yes
Video Bitrate	32kbps–4096kbps
Audio Sampling	8kHz, 16bit
Audio Bitrate	64kbps
Video Output	1 HDMI, 1 VGA HDMI: 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen display	When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
Third Party Camera Access	Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Standard Compression
Video Compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode	General; alarm; motion detection
Recording Playback	1/4/9
Backup Method	USB device and network
Playback Mode	Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm	Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm	Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Smart Alarm	SMD Plus
Alarm Linkage	Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail
Ports
Audio Input	1-channel RCA 8-channel BNC (Coaxial Audio)
Audio Output	1-channel RCA
Two-way Talk	Yes (share the same audio input with the first channel)
Disk Interface	1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
RS-485	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply	12VDC, 1.5A
Power Consumption	<7W (without HDD)
Net Weight	0.89kg (1.96lb)
Gross Weight	1.40 kg (3.09 lb)
Product Dimensions	260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)
Packaging Dimensions	333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4 :2011+A1:2014 FCC: 47 CFR Part 15, Subpart B

More Information

SKU Padre	XVR4108HS-I(V2.0)
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 year warranty
SSD	No
Bit rate	40 Mbps
Channel Recorders	8
Technology	Hybrid
Recorders Resolution	1080 n
PoC	Not
