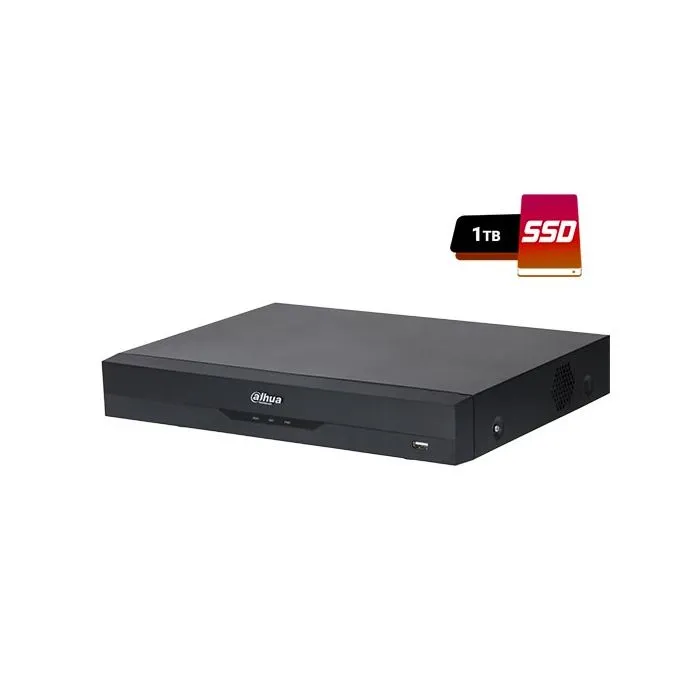

Dahua XVR5104HE-I3-1 Pro Series AI 1U WizSense Penta-brid 2K HD+ 4CH 5MP 5IN1 P2P SMD Plus Face Detection Alarm IVS IoT Includes 1TB SSD

Name: Dahua XVR5104HE-I3-1 Pro Series AI 1U WizSense Penta-brid 2K HD+ 4CH 5MP 5IN1 P2P SMD Plus Face Detection Alarm IVS IoT Includes 1TB SSD
Brand: DAHUA
SKU: XVR5104HE-I3-1×1T/SSD
Price: 194.46 EUR
Availability: InStock

In stock

SKU: XVR5104HE-I3-1×1T/SSD

Are you a Reseller? Register Here

Description

The Dahua S-XVR XVR5104HE-I3-1×1T/SSD is an advanced surveillance solution designed for superior performance and exceptional versatility. Supporting up to 4 channels, it integrates 5-in-1 technology (HDCVI, AHD, TVI, CVBS, and IP), enabling resolutions of up to 5MP. With H.265+ compression and AI Coding, it ensures efficient video data management. Equipped with HDMI and VGA outputs for high-definition display up to 1080p, it also features a USB 2.0 port for easy data transfer. The RS485 interface allows PTZ camera control, while the RJ45 port supports speeds of up to 100Mbps for reliable network connectivity. The unit comes with a 1TB SSD, providing ample storage for video recordings. It includes 4 RCA audio inputs and 1 output, along with 8 alarm inputs and 3 outputs for enhanced security integration. Supporting up to 6 IP camera inputs, each with a resolution of up to 6MP, it can manage up to 128 simultaneous users. Integrating Artificial Intelligence, IoT, and POS functionalities, it offers advanced features such as perimeter protection, face detection, SMD Plus, and AI-powered search. Data transmission remains stable even over long distances, reaching up to 1,200 meters at 720p resolution. This robust and intelligent DVR is an ideal choice for those seeking a high-performance surveillance system capable of managing complex security environments with precision and reliability.

Data sheet

System
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)	Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes	6 attributes
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity	Up to 10 face databases with 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)	1 channel
SMD Plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input	4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input	1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input	Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity	Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps)
Dual-stream	Yes
Video Bit Rate	32 kbps–6144 kbps
Audio Sampling	8 kHz, 16 bit
Audio Bit Rate	64 kbps
Video Output	1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access	IOS; Android
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome; Firefox; IE
Network Mode	Single-address mode
Recording Playback
Record Mode	General; motion detection; intelligent; alarm; POS
Recording Playback	1/4
Backup Method	USB device and network
Playback Mode	Instant playback; general playback; event playback; tag playback; smart playback (face and motion detection)
Alarm
General Alarm	Motion detection; local alarm; alarm box; camera external alarm; network alarm; PIR alarm
Anomaly Alarm	Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline
Intelligent Alarm	Face detection; face recognition; perimeter protection
Alarm Linkage	Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email
Ports
Audio Input	4-channel RCA 4-channel BNC (Coaxial Audio)
Audio Output	1-channel RCA
Two-way Talk	Yes (share the same audio input with the first channel)
Alarm Input	8 channels
Alarm Output	3 channels
HDD Interface	1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 22 days under default settings
RS-485	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply	12 VDC, 1.5A
Power Consumption	<5 W (with SSD)
Net Weight	1.31 kg (2.89 lb)
Gross Weight	1.77 kg (3.90 lb)
Product Dimensions	325.0 mm × 257.1 mm × 55.0 mm (12.80'' × 10.12'' × 2.17'') (W × D × H)
Packaging Dimensions	372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H)
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	≤93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

More Information

SKU Padre	XVR5104HE-I3-1×1T/SSD
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
SSD	Yes
Bit rate	40 Mbps
Channel Recorders	4
Technology	Hybrid
Recorders Resolution	5Mpx
PoC	Not
