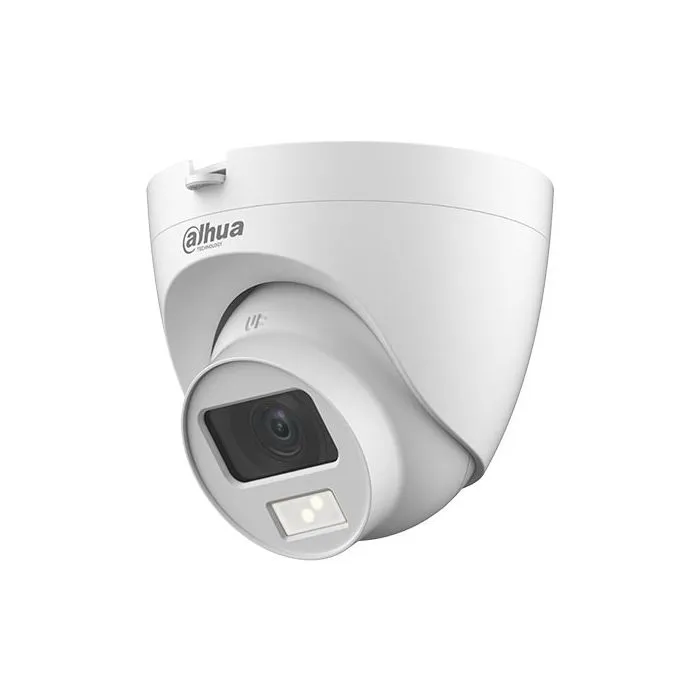

Dahua HAC-HDW1500CLQ-IL-A Eyeball dome camera hdcvi hybrid 4in1 HD+ 2K 5Mp 2.8mm Smart Dual Light audio osd IP67

Name: Dahua HAC-HDW1500CLQ-IL-A Eyeball dome camera hdcvi hybrid 4in1 HD+ 2K 5Mp 2.8mm Smart Dual Light audio osd IP67
Brand: DAHUA
SKU: HAC-HDW1500CLQP-IL-A-0280B-S2
Price: 31.14 EUR
Availability: OutOfStock

Out of stock

SKU: HAC-HDW1500CLQP-IL-A-0280B-S2

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

The Dahua HAC-HDW1500CLQP-IL-A-0280B-S2 Lite Series analog dome camera delivers 5-megapixel resolution with a 2.8mm fixed lens, supporting HDCVI, HDTVI, AHD, and Analog technologies. Equipped with Smart Dual Light & Super Adapt technology, it features a built-in microphone and an IR illuminator with both a warm light LED and an infrared LED, providing up to 20 meters of night vision for exceptional clarity. With its Day/Night mode (ICR), the camera automatically adjusts its settings for optimal daytime and nighttime recording. Image-enhancing features such as BLC (Back Light Compensation), HLC (High Light Compensation), and DWDR (Digital Wide Dynamic Range) ensure superior image quality even in challenging lighting conditions. Built with an IP67-rated housing, the camera is dustproof and waterproof, making it ideal for outdoor use and ensuring reliable performance in any environment.

Data sheet

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 sNTSC: 1/30 s–1/100000 s
Min. Illumination	0.05 [email protected] (Color, 30 IRE)0.005 [email protected] (B/W, 30 IRE)0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	IR: 20 m (65.62 ft)Warm Light: 20 m (65.62 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (Warm light);2 (IR light)
Angle Adjustment	Pan: 0°–360° Tilt: 0°–78°Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Field of View	2.8 mm: H: 106°; V: 56°; D: 125°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 0.8 m (2.62 ft)
Video
Video Frame Rate	CVI:PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fpsAHD:PAL: 4M@25 fps;NTSC: 4M@30 fpsTVI:PAL: 4M@25 fps;NTSC: 4M@30 fpsCVBS:PAL: 960H;NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; DWDR;
WDR	DWDR
White Balance	Auto;Area white balance
Gain Control	Auto/Manual
Noise Reduction	2D NR
Illumination Mode	Smart IR&WL; WL Mode; IR Mode
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE-LVD: EN 62368-1;CE-EMC: EN 55032; EN 55035;FCC: 47 CFR FCC Part 15, Subpart B
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in mic
Power
Power Supply	12 VDC ± 30%
Power Consumption	Max 4.5 W (12 VDC, WLED on)
Environment
Operating Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Structure
Casing Material	Plastic
Product Dimensions	φ97.1 mm × 93.8 mm (φ3.82" × 3.69")
Net Weight	0.19 kg (0.42 lb)
Gross Weight	0.3 kg (0.66 lb)
Installation	Wall mount; ceiling mount; vertical pole mount

More Information

SKU Padre	HAC-HDW1500CLQP-IL-A-0280B-S2
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connectivity	wire
telecamere_audio	No
Camera Resolution	5MP
Lens	fixed lens
Camera Type	Dome
Technology	Hybrid
PoC	Not
Tecnologia colore	Smart Dual Light
