In stock
|
SKU: JX133260
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

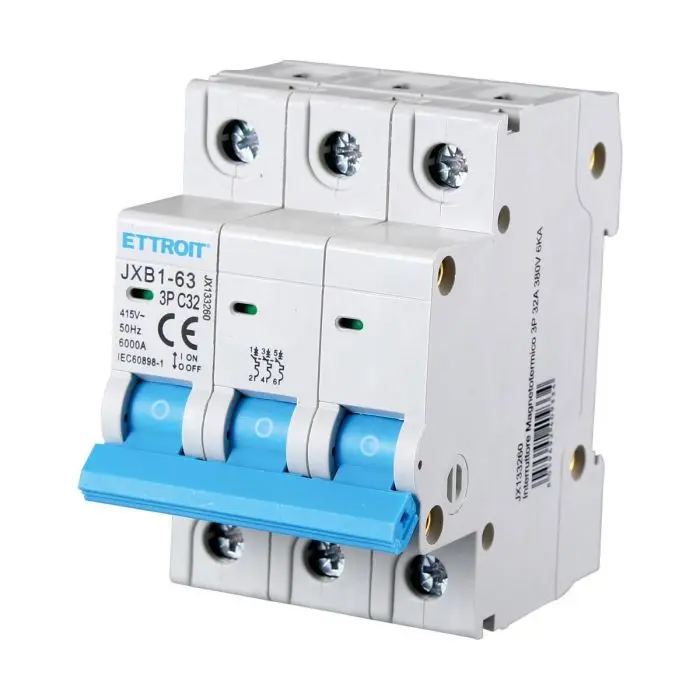

The ETTROIT JX133260 is a 3-pole automatic miniature circuit breaker, designed for the protection of three-phase circuits in industrial, commercial and residential applications. With a rated current of 32A and a rated voltage of 380V, it offers effective protection against overloads and short circuits. The breaking capacity of 6kA ensures safety in fault conditions, while the tripping curve C ensures optimum response to moderate inrush currents.
The ETTROIT JX133260 represents the ideal choice for the management and protection of three-phase electrical circuits, ensuring safety, reliability and ease of use in electrical systems.
Model | ETTROIT JX133260 |
Typology | Circuit breaker |
Number of Poles | 3 Poles (3P) |
Nominal Current (In) | 32A |
Nominal Voltage (Un) | 380V |
Interruption Capacity (Icu) | 6kA |
Intervention Curve | Curve C |
Category of Employment | B.C |
Degree of Protection | IP20 |
Reference Regulations | IEC 60898-1 |
Assembly | DIN rail |
Operating Temperature | -5°C to +40°C |
Dimensions | Occupies 3 DIN modules |
SKU Padre | JX133260 |
---|---|
Ean | 8059692409334 |
Shipping | Shipping 24/48H |
Warranty | 5 years warranty |
Colore | Gray |
Ampere | 32A |
Int. power Ka | 6Ka |
Classe A | No |
Curva Magnetotermico | Curva C |
Smart home | No |
Module Type | Interruttore magnetotermico |
Number of modules | 3 |
Voltage | AC:380Vac |
Packaging | 4 |
