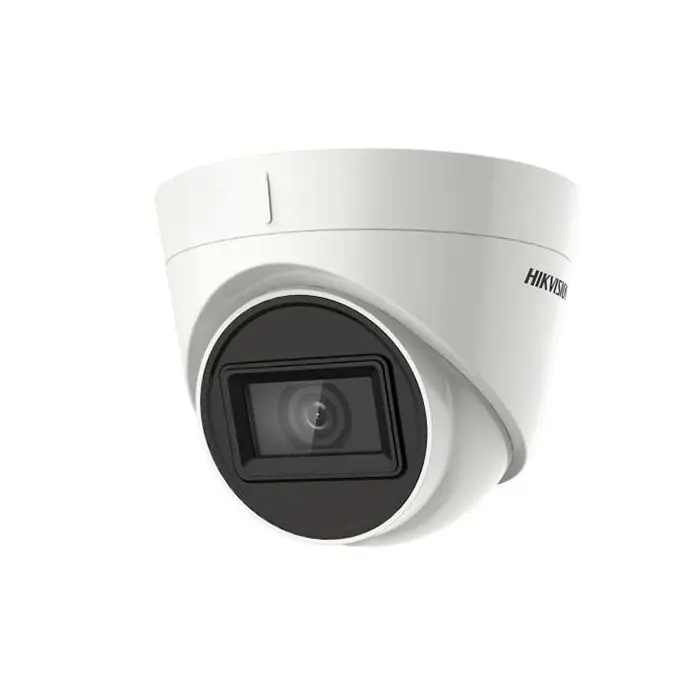

Hikvision DS-2CE78U1T-IT3F turret dome camera 4IN1 TVI/AHD/CVI/CVBS 4K 8Mpx 2.8mm osd IP67

Name: Hikvision DS-2CE78U1T-IT3F turret dome camera 4IN1 TVI/AHD/CVI/CVBS 4K 8Mpx 2.8mm osd IP67
Brand: HIKVISION
SKU: DS-2CE78U1T-IT3F(2.8mm)
Price: 88.74 EUR
Availability: InStock

In stock

SKU: DS-2CE78U1T-IT3F(2.8mm)

Are you a Reseller? Register Here

Description

Hikvision sku turret dome camera. DS-2CE78U1T-IT3F (SAP code n. 300611832) 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), 8.0 Megapixel 4K resolution (3840 x 2160), 2.8mm fixed lens (102.2° viewing angle) . OSD menu with adjustable functions: D-WDR digital, AGC, BLC, HLC, 2D-DNR, brightness, sharpness, mirror, privacy mask etc. There is no delay during transmission and the original high-quality image is maintained . Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for about 5 s. Turret dome camera with a white plastic and metal structure, which can be installed indoors or outdoors (Waterproof IP67). The dome shape makes the product installable on the ceiling or wall.

Specifications

High quality 4K images with 8 MP, 3840 x 2160 resolution
2.8mm fixed focal length lens (FOV: 102.2°)
Up to 60 meters IR distance for bright images at night.
One port for four switchable signals (switchable TVI/AHD/CVI/CVBS).
Plastic and metal structure with IP67 Waterproof protection rating
DC 12V power supply.

Data sheet

Model: DS-2CE78U1T-IT3F
SAP code: 300611832
Image Sensor: 8.29MP progressive scan CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Frame Rate: TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps - CVI: [email protected],n 8MP@15fps - AHD: [email protected], 8M @15fps - CVBS: 960H P/N
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day＆Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System: PAL/NTSC
Lens Type: 2.8mm
Focal Length ＆ FOV: 102.2°
Lens Mount: M16
Day/Night Mode: Auto/Color/BW (Black and White)
WDR (Wide Dynamic Range): Digital WDR
Image Settings: Brightness, Sharpness, AGC
White Balance: Auto/Manual
AE (Auto Exposure) Mode: DWDR,BLC,HLC,Global
Noise Reduction: 2D DNR
IR Range: Up to 60m
Video Output: 1 HD analog output - Switchable TVI/AHD/CVI/CVB
Power: 12 VDC ± 25%, max. 5.3W
Material: Main body: Metal, Enclosure: Plastic
Protection: IP67 Waterproof
Dimension: Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6")
Weight: Approx. 320 g (0.71 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication: HIKVISION-C

More Information

SKU Padre	DS-2CE78U1T-IT3F(2.8mm)
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 year warranty
Connectivity	wire
telecamere_audio	No
Camera Resolution	8MP
Lens	fixed lens
Camera Type	Dome
Technology	Hybrid
PoC	Not
