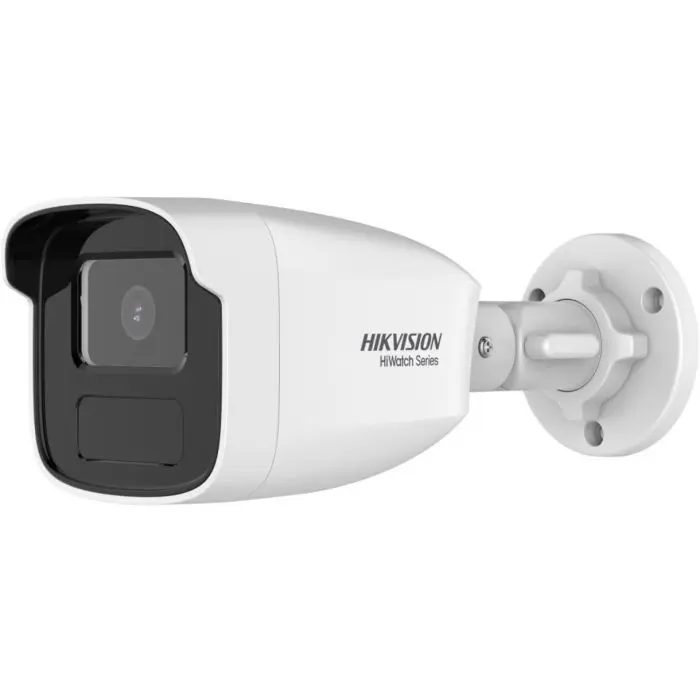

Hikvision Hiwatch IP bullet camera 8MP 4K fixed lens 4mm POE - HWI-B480H(C)

Name: Hikvision Hiwatch IP bullet camera 8MP 4K fixed lens 4mm POE - HWI-B480H(C)
Brand: HIKVISION
SKU: HWI-B480H(C)
Price: 101 EUR
Availability: InStock

In stock

SKU: HWI-B480H(C)

Are you a Reseller? Register Here

Description

The HIWATCH SERIES HWI-B480H 4K fixed bullet IP camera offers high-quality imaging with a resolution of 8 MP, ensuring clear and detailed images. Thanks to 120 dB WDR technology, it is able to provide clear images even in the presence of strong counterlight.

Featuring efficient H.265+ compression technology, this camera helps minimize bandwidth consumption and storage space without compromising image quality.

The camera is water and dust resistant with an IP67 rating, ensuring reliable performance even in outdoor environments or exposed to atmospheric agents.

Installation is simple thanks to Power over Ethernet (PoE) technology, which allows you to power the camera and transmit data via a single Ethernet cable, minimizing installation complexity and associated costs.

Data sheet

Category Detail

Room	Image Sensor: 1/2.8" Progressive Scan CMOS
	Max. Resolution: 3840 × 2160
	Min. Illumination: 4 mm: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
	Shutter Time: 1/3 s to 1/100,000 s
	Day & Night: IR cut filter
	Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens	Lens Type: Fixed focal lens, 4 and 6 mm optional
	Focal Length & FOV: 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
	6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
	Lens Mount: M12
	Iris Type: Fixed
	Apertures: 4mm, F2.0; 6mm, F1.6
Illuminator	Supplement Light Type: IR
	Supplement Light Range: Up to 50 m
	Smart Supplement Light: Yes
	IR Wavelength: 850nm
Video	Main Stream: 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
	60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
	Sub-Stream: 50Hz: 25fps (1280×720, 640×480, 640×360)
	60Hz: 30fps (1280×720, 640×480, 640×360)
	Video Compression: Main stream: H.265+/H.265/H.264+/H.264
	Sub-stream: H.265/H.264/MJPEG
	Video Bit Rate: 32 Kbps to 16 Mbps
	H.264 Type: Baseline Profile/Main Profile/High Profile
	H.265 Type: Main Profile
	Bit Rate Control: CBR/VBR
	Region Of Interest (ROI): 1 fixed region for main stream
Network	Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
	Simultaneous Live View: Up to 6 channels
	API: Open Network Video Interface (Profile S), ISAPI, SDK
	Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
	User/Host: Up to 32 users; 3 levels: Administrator, Operator and User
Interface	Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event	Basic Event: Motion detection, video tampering alarm, exception
	Linkage: Notify surveillance center, trigger capture
General	Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5W
	Material: Front cover: metal, body: plastic, bracket: metal
	Dimension: 83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
	Package Dimension: 260mm
