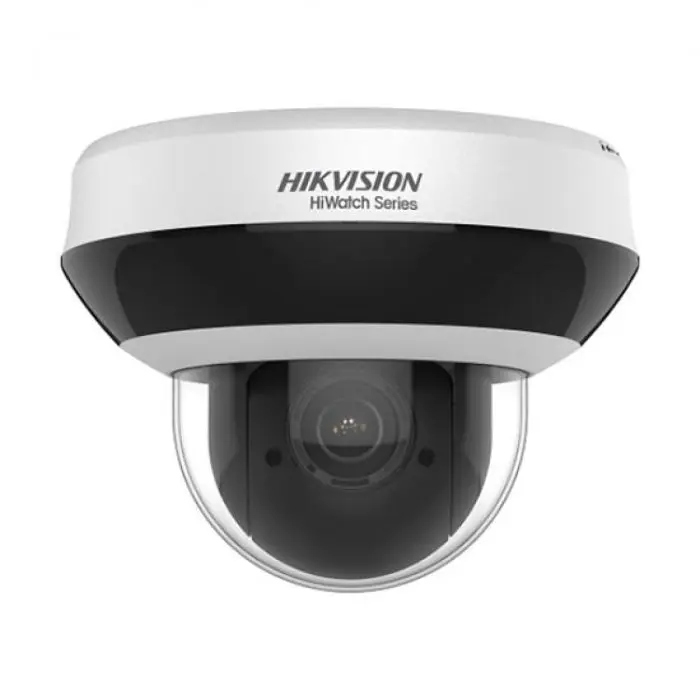

Hikvision HWP-N1200IH-DE3 Hiwatch series mini speed dome camera IP pt 2mpx 2.8mm osd poe slot sd IP66

Name: Hikvision HWP-N1200IH-DE3 Hiwatch series mini speed dome camera IP pt 2mpx 2.8mm osd poe slot sd IP66
SKU: HWP-N1200IH-DE3
Price: 108.08 EUR
Availability: OutOfStock

Out of stock

SKU: HWP-N1200IH-DE3

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Mini speed dome camera IP PT camera Hiwatch series Hikvision sku. HWP-N1200IH-DE3, 2.0 Megapixel Full HD resolution (1920 × 1080p) 2.8mm Fixed lens (102° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, Real WDR 120dB, 3D-DNR, brightness, sharpness, mirror, digital zoom 16x. Very easy operation by Internet Explorer browser allows the users to convenient and remote support, and also remote management of the camera. Included camera software enables management and integrated monitoring of many network cameras.

Dome CCTV camera with with metal structure in white color, can be installed indoors or outdoors (Waterproof IP66) with Infrared illuminator with REAL range up to 15M night vision. The dome shape makes the product installable on the ceiling or wall.

Main characteristics

1/3” CMOS progressive scan 2.0 Megapixel
Video Compression support H.265+/H.265/H.264+/H.264/MJPEG
High Speed, remote real-time transmissions.
Fixed optic 2.8mm - IR infrared distance up to 15m
PoE power supply technology (power and video via network cable) or 12V DC
OSD menu: Real WDR 120dB, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC, Digital zoom 16x.
Remote multiple access: Web viewer, IVMS-4500, HIK-Connect
Micro SD memory slot - Support for Micro SD cards up to 256GB (local registration possible)
P2P installation and configuration - Scan QR code
Two-way audio function - Audio in / out interface
Protections: IP66 waterproof & LPS Protection (Lightning Protection System)
OSD menu only in English
ONVIF compatibility protocol

Data sheet

Camera Module
Image Sensor	1/3" progressive scan CMOS
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
Day & Night	IR Cut Filter
Shutter Time	50 Hz: 1/1 s to 1/30,000 s 60 Hz: 1/1 s to 1/30,000 s
Digital Zoom	16×
Privacy Mask	24 programmable privacy masks
Focus Mode	N/A
WDR	120 dB WDR
Lens
Focal Length	2.8 mm
Field of View	2.8 mm (101,6°H, 56°V)
Working Distance	2.8 mm: > 0.8 m
Aperture Range	F1.6
IR
IR Distance	Up to 15 m
Smart IR	Yes
PTZ
Pan and Tilt Range	Pan: 0° to 330° Tilt: 0° to 90°
Pan and Tilt Speed	Configurable, from 0.1°/s to 100°/s Preset speed: 100°/s
Proportional Zoom	Yes
Number of Preset	300
Power-off Memory	Yes
Park Action	Preset
PTZ Position Display	Yes
Preset Freezing	Yes
Scheduled Task	Preset, Dome Reboot, Dome Adjust
Compression Standard
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Yes
H.265+	Yes
Video Bitrate	32 Kbps to 16384 Kbps
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
SVC	Yes
Smart Feature
Basic Event Detection	Motion Detection, Video Tampering Detection, Exception
Smart Event Detection	Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
ROI encoding	Main stream, sub-stream, and third stream respectively support four fixed areas.
Smart Record	ANR (Automatic Network Replenishment), Dual-VCA
Max. Image Resolution	1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement	HLC, BLC, 3D DNR
Network
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API	Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View	Up to 20 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client	iVMS-4200, Hik-Connect
Web Browser	IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Audio Input	1-ch audio input (line in)
Audio Output	1-ch audio output (line out)
Network Interface	1 RJ45 10 M/100 M Ethernet, PoE
General
Power	12 VDC (Max. 12 W), PoE (802.3af) (Max. 12 W)
Working Temperature	-10°C to 55°C (-14°F to 131°F)
Working Humidity	≤ 90%
Protection Level	IP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 124.3 mm × 76.9 mm (Φ 4.89" × 3.03")
Weight (approx.)	Approx. 450 g (0.99 lb.)

More Information

Ean	6954273678357
Shipping	Shipping 24/48H
Warranty	2 year warranty
Camera Resolution	2 mpx
Lens	fixed lens
Camera Type	other cameras
Technology	IP
Connettività	Filare
