Hikvision iDS-7208HQHI-ES2/S DVR 8Ch Pro Series Turbo AcuSense 3K 5Mpx 5in1 HDCVI/HDTVI/AHD/CVBS+IP includes HD 1TB

Name: Hikvision iDS-7208HQHI-ES2/S DVR 8Ch Pro Series Turbo AcuSense 3K 5Mpx 5in1 HDCVI/HDTVI/AHD/CVBS+IP includes HD 1TB
Brand: HIKVISION
SKU: iDS-7208HQHI-ES2/S
Price: 252 EUR
Availability: InStock

In stock

SKU: iDS-7208HQHI-ES2/S

Are you a Reseller? Register Here

Description

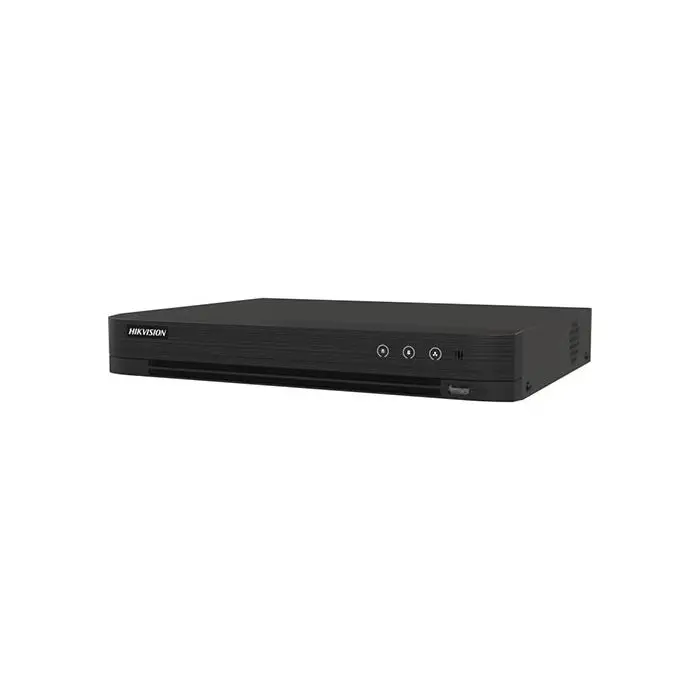

Hikvision DVR analog video recorder sku. iDS-7208HQHI-ES2/S Pro Series 8-Ch 5IN1 hybrid channels with 1TB Hard Disk Included! Using deep learning 2.0-based motion detection, it offers reliable protection across all analog channels, with the ability to classify and minimize false alarms. Perimeter protection, also based on deep learning, adds an additional layer of security. Thanks to H.265 Pro+ compression technology, the system optimizes encoding efficiency and reduces storage costs. With encoding capabilities up to 3K/5MP at 12fps, it can handle a wide range of surveillance situations. HDTVI/AHD/CVI/CVBS/IP video inputs allow for connectivity flexibility, while up to 12 IP camera inputs (up to 6 MP) further extend the system's capabilities. Up to 6MP recording and intelligent playback make data management efficient. Intelligent features, including deep learning-based motion detection and perimeter protection, provide advanced security. Furthermore, the system is compatible with a variety of Wi-Fi dongle products and offers simplified network management through Hik-Connect & DDNS. Its flexibility is further improved with the configurability of the output bandwidth limit. Designed to elevate your surveillance experience to new levels. AcuSense DVRs represent the pinnacle of modern surveillance technology, offering complete security solutions for any environment.

Main feature
Deep learning 2.0-based motion detection for all analog channels.
Deep learning-based perimeter protection.
Efficient H.265 Pro+ compression technology.
Encoding capability up to 3K/5MP Lite @ 12 fps.
HDTVI/AHD/CVI/CVBS/IP video inputs.
Up to 12 IP camera inputs (up to 6 MP).
Capacity up to 10TB per HDD.
Audio via coaxial cable.

Compression and Recording
H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs.
Recording on all channels up to 1080p resolution.

Storage and Playback
2 SATA interfaces.
Intelligent search for efficient playback.

Intelligent Functions
Deep learning-based motion detection and perimeter protection (line crossing and intrusion detection).
Support for multiple Video Content Analysis (VCA) events for both analog and smart IP cameras.

Network access and Ethernet
Compatible with the main Wi-Fi dongle products on the market.
Hik-Connect & DDNS (Dynamic Domain Name System) for simple network management.
Configurable output bandwidth limit.

Data sheet

Model:	iDS-7208HQHI-ES2/S
SAP Code:	300227102
Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis	Up to 4-ch
Facial Detection
Facial Detection and Capture	Face picture detection, face picture search
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	When 1080p Lite mode is not enabled: 3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/
Frame Rate	Main streams: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N Sub-streams: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32Kbps to 6Mbps
Dual-stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64Kbps
Video and Audio
IP Video Input	2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP came
Analog Video Input	8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback	8-ch
HDTVI Input	3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25fps
AHD Input	5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30fps, 1080p@25fps, 720p@30fps, 720p@25fps
HDCVI Input	5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30fps, 1080p@25fps, 720p@30fps, 720p@25fps
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
Total Bandwidth	96Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection	64
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In/Out	N/A
General
Power Supply	12 VDC
Consumption	≤ 30W
Working Temperatures	-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight	≤ 1.78 kg (3.9 lb)
