In stock
|
SKU: HDR-150-12
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

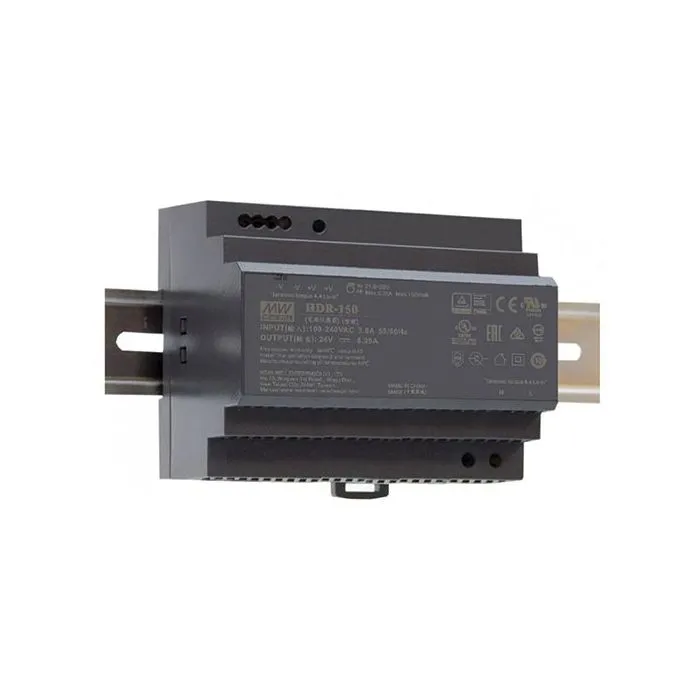

MeanWell HDR-150-12 150W compact and cost-effective DIN rail power supply, suitable for mounting on TS-35/7.5 or TS-35/15 DIN rail. With a width of only 105mm, it optimizes space in electrical panels. It supports a wide AC input range (85-264V, operating up to 277V) and complies with EN61000-3-2 for harmonic currents. The plastic casing provides protection from electrical hazards, while the efficiency of up to 90.5% allows operation between -30°C and +70°C with natural convection cooling. Equipped with constant current protection for overloads, it is ideal for inductive and capacitive applications. Safety certifications make it a reliable solution for home and industrial automation.
Type: | DIN rail |
Number of exits: | Separate |
Output Power: | 150W |
Output voltage: | 12V |
Output current: | 11.3A |
Input voltage (VAC): | From 85VAC to 264VAC |
Ripple and noise: | 100mV |
Load regulation (%): | 1% |
Operating temperature range: | from -30°C to +70°C |
Insulation: | Isolated |
Mounting method: | DIN rail mounting |
Size | 105x90x54.5mm (W*H*D) |
Weight | 310g |
SKU Padre | HDR-150-12 |
---|---|
Ean | 4711287421841 |
Shipping | Shipping 24/48H |
Warranty | 2 year warranty |
Packaging | 1 |
Dimensions | 105x90x54.5mm |
Voltage | 12V |
Waterproof | No waterproof |
Watts | 130 |
Operating temperature | -20°C to 55°C |
