In stock
|
SKU: LRS-35-15
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

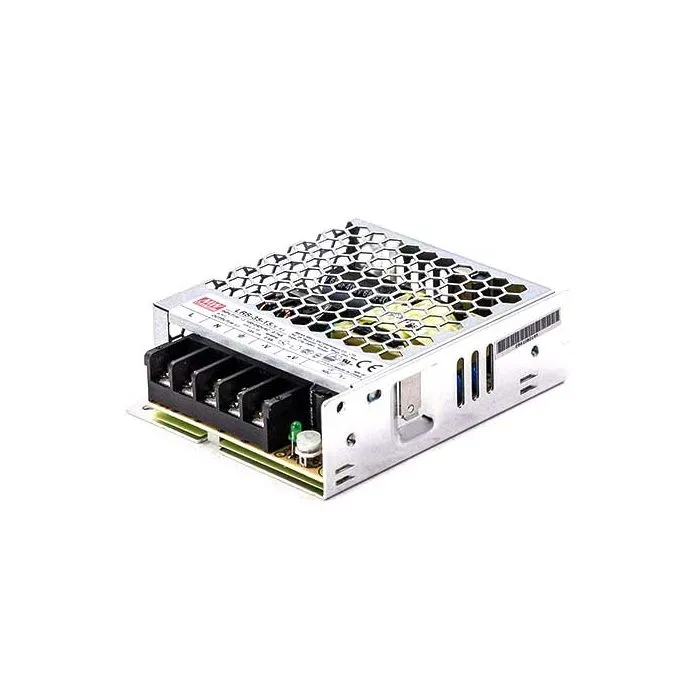

Meanwell LRS-35-15 Power Supply is a 36W slim grid model with 15V output, designed for indoor constant voltage applications with Switching technology. It is ideal for LED power devices, such as strips, bars and modules, as well as equipment in the security, alarm and video surveillance sectors. This power supply can withstand voltage peaks of up to 300VAC for 5 seconds and guarantees reliable operation even at high temperatures, up to 70°C. Its resistance is proven by passing the 5G vibration test, while operation is guaranteed up to 5,000 meters above sea level. Thanks to its high efficiency, long life and reliability, it is an ideal choice for those looking for high performance in compact dimensions, with a high power density and a free air convection cooling system.
Input voltage | 85-264VAC |
Output voltage | 15 Vdc |
Output current | 2.4 A |
Power | 36 W |
Ripple | 120 mVp-p |
Technology | Switching |
Input connection | Screw terminals |
Output connection | Screw terminals |
Degree of protection | IP20 |
Insulation class | II |
Protection | Short circuit, Over current, Over voltage |
Working temperature | Operating temperature -30°C ~ 70°C |
Material | Metal |
Color | Silver |
Dimensions | 99x82x30 mm |
Weight | 230 grams |
Packaging | Box |
SKU Padre | LRS-35-15 |
---|---|
Ean | 4711287434513 |
Shipping | Shipping 24/48H |
Warranty | 3 years warranty |
Packaging | 1 |
Dimensions | 99x82x30mm |
Waterproof | IP20 |
Dimmable | No |
Watts | 36 |
Operating temperature | -20°C to 55°C |
