In stock
|
SKU: UHP-350-12
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

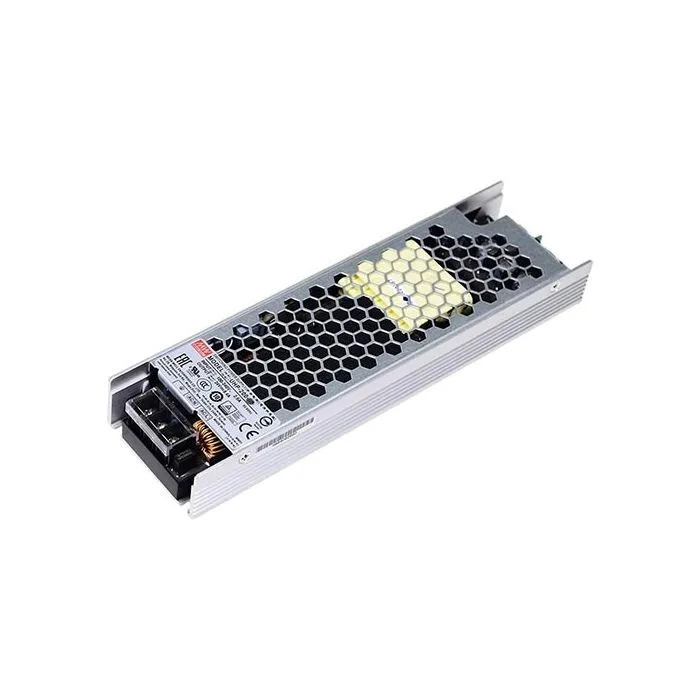

MeanWell UHP-350 series is a 350W AC/DC enclosed power supply, compact and easy to install, ideal for ITE applications and industrial automation. With its compact design featuring a 31mm profile, it provides high efficiency and reliability in various industrial and electronic environments. It operates with an input voltage range of 90 to 264 VAC and withstands spikes up to 300 VAC for 5 seconds. Thanks to the active PFC function and fanless cooling, it offers excellent efficiency and reliable operation between -30°C and +70°C. Equipped with full protection against overloads and overvoltages, it supports an operating altitude of up to 5000 meters and includes an LED power-on indicator. Its compact dimensions of 220x62x31 mm make it perfect for industrial automation machines, control systems, mechanical and electrical equipment, electronic instruments, household appliances, LED displays, and power supply equipment.
Model | UHP-350-12 |
DC output voltage | 12V |
Nominal Output Current | 29.2A |
Rated output power | 350.4W |
Efficiency | 94% |
Input current | Cold start 40A/115VAC 80A/230VAC |
Input leakage current | <0.75mA / 240VAC |
AC input current | 2.2A/115VAC 1.1A/230VAC |
Input voltage | 90~264VAC |
Working temperature | -30 ~ +70 °C |
PFC | YES |
Dimensions | 220x62x31mm |
Certification | CE, CB, EAC, CCC |
SKU Padre | UHP-350-12 |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 2 year warranty |
Packaging | 1 |
Dimensions | 220x62x31mm |
Voltage | 12V |
Waterproof | No waterproof |
Dimmable | No |
Watts | 350 |
Operating temperature | -25°+60°C |
