In stock
|
SKU: XLG-100-24-A
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

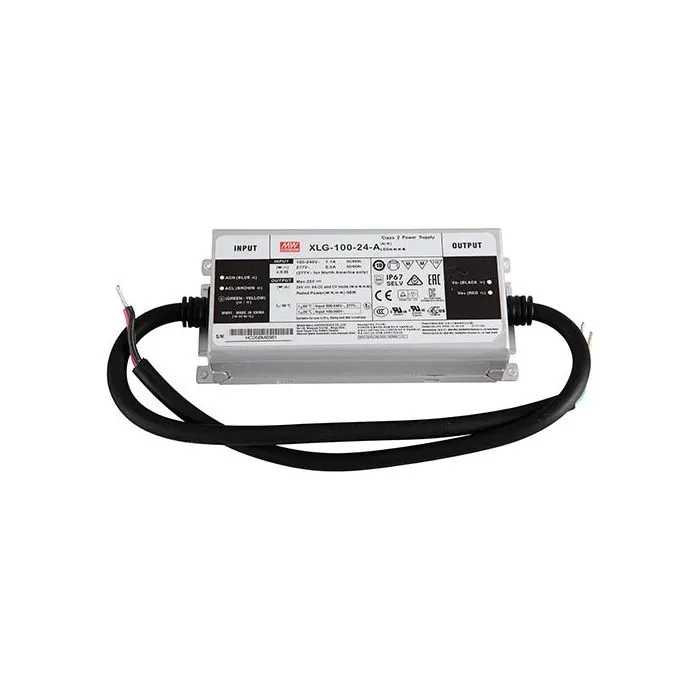

MeanWell XLG-100 is a 100W constant voltage AC/DC LED driver compatible with 100-305VAC (European 220V and American 110V). With up to 94% efficiency and a fanless design, this driver is designed to operate reliably in case temperatures ranging from -40°C to +90°C thanks to free air convection. Its metal case and IP67 protection level make it perfect for both indoor and outdoor applications. Certified to international safety standards, including IEC61347, GB7000.1-2015 and UL8750, the XLG-100 offers a fully compliant output and dimming circuitry with isolation to ensure the safety of the user and the lighting system during installation. The XLG-100 is the ideal solution for those looking for a highly efficient, safe and versatile LED driver, perfect for a wide range of LED lighting environments and applications.
| Producer | MeanWell |
| Series | XLG |
| Applications | LED |
| Power | 96W |
| Output voltage | 24V DC |
| Output current | 4A |
| Waterproof class | IP67 protection grade |
| Protection | SCP short circuit protection, OPP overload protection, OVP overcurrent protection, OTP overheating |
| Electrical connection | conductor 300mm |
| Number of exits | Single Output |
| Efficiency | 92% |
| Power consumption without load | <0.5W |
| Work regime | constant current, constant voltage |
| Supply voltage | 100...305VAC |
| Operating temperature range: | from -40°C to +90°C |
| Additional functions | PFC activeOutput current regulation |
| Dimensions | 140x63x32mm |
| Weight | 575g |
| SKU Padre | XLG-100-24-A |
|---|---|
| Ean | Non Applicabile |
| Shipping | Shipping 24/48H |
| Warranty | 2 year warranty |
| Packaging | 1 |
| Dimensions | 140x63x32mm |
| Voltage | 24V |
| Waterproof | IP67 |
| Dimmable | Yes |
| Watts | 100 |
| Operating temperature | -40°C to +85°C |
