In stock
|
SKU: XLG-200-24-A
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

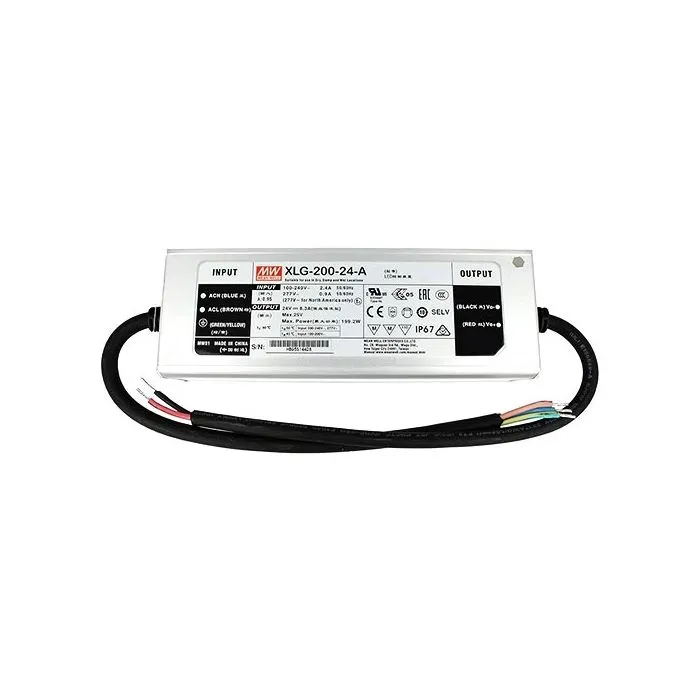

MeanWell XLG-200 is a 200W constant voltage AC/DC LED driver compatible with 100-305VAC. With up to 94% efficiency and a fanless design, this driver is designed to operate reliably in case temperatures ranging from -40°C to +90°C thanks to free air convection. Its metal case and IP67 protection level make it perfect for both indoor and outdoor applications. Certified to international safety standards, including IEC61347, GB7000.1-2015 and UL8750, the XLG-200 offers a fully compliant output and dimming circuitry with isolation to ensure the safety of the user and the lighting system during installation. The XLG-200 is the ideal solution for those looking for a highly efficient, safe and versatile LED driver, perfect for a wide range of LED lighting environments and applications.
Producer | MeanWell |
Series | XLG |
Applications | LED |
Power | 199.2W |
Output voltage | 24V DC |
Output current | 8.3A |
Waterproof class | IP67 protection grade |
Protection | SCP short circuit protection, OPP overload protection, OVP overcurrent protection, OTP overheating |
Electrical connection | conductor 300mm |
Number of exits | Single Output |
Efficiency | 92% |
Power consumption without load | <0.5W |
Work regime | constant current, constant voltage |
Supply voltage | 100...305VAC |
Operating temperature range: | from -40°C to +90°C |
Additional functions | PFC activeOutput current regulation |
Dimensions | 199x63x35.5mm |
Weight | 850g |
SKU Padre | XLG-200-24-A |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 2 year warranty |
Packaging | 1 |
Dimensions | 199x63x35.5mm |
Voltage | 24V |
Waterproof | IP67 |
Dimmable | Yes |
Watts | 200 |
Operating temperature | -40°C to +85°C |
