In stock
|
SKU: XLG-75-12-A
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

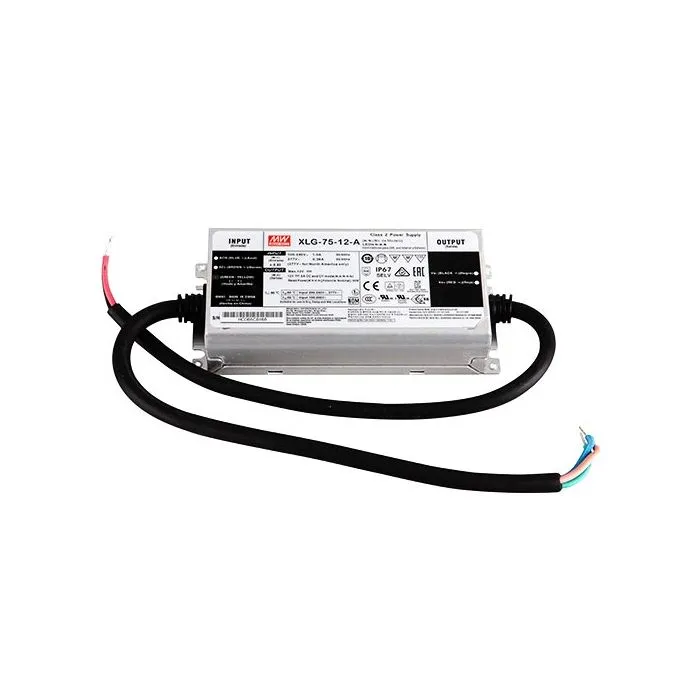

MeanWell XLG-75 is a 75W constant voltage AC/DC LED driver compatible with 100-305VAC (European 220V and American 110V). With up to 94% efficiency and a fanless design, this driver is designed to operate reliably in case temperatures ranging from -40°C to +90°C thanks to free air convection. Its metal case and IP67 protection level make it perfect for both indoor and outdoor applications. Certified to international safety standards, including IEC61347, GB7000.1-2015 and UL8750, the XLG-75 offers a fully compliant output and dimming circuitry with isolation to ensure the safety of the user and the lighting system during installation. The XLG-75 is the ideal solution for those looking for a highly efficient, safe and versatile LED driver, perfect for a wide range of LED lighting environments and applications.
Producer | MeanWell |
Series | XLG |
Applications | LED |
Power | 60W |
Output voltage | 12V DC |
Output current | 5A |
Waterproof class | IP67 protection grade |
Protection | SCP short circuit protection, OPP overload protection, OVP overcurrent protection, OTP overheating |
Electrical connection | conductor 300mm |
Number of exits | Single Output |
Efficiency | 92% |
Power consumption without load | <0.5W |
Work regime | constant current, constant voltage |
Supply voltage | 100...305VAC |
Operating temperature range: | from -40°C to +90°C |
Additional functions | PFC activeOutput current regulation |
Dimensions | 140x63x32mm |
Weight | 580g |
SKU Padre | XLG-75-12-A |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 2 year warranty |
Packaging | 1 |
Dimensions | 140x63x32mm |
Voltage | 12V |
Waterproof | IP67 |
Dimmable | Yes |
Watts | 75 |
Operating temperature | -40°C to +85°C |
