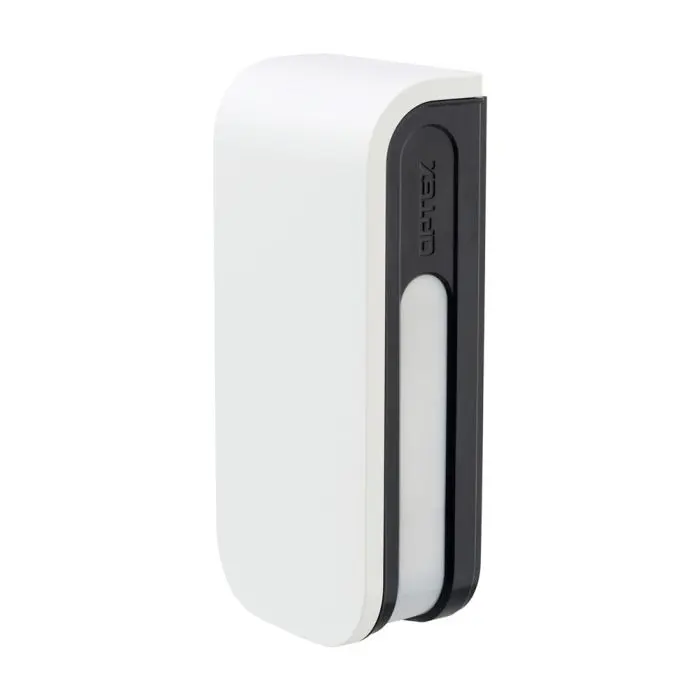

OPTEX BXS-AM Outdoor double PIR detector 12m per side Antimasking 4 detection zones

Name: OPTEX BXS-AM Outdoor double PIR detector 12m per side Antimasking 4 detection zones
Brand: OPTEX
SKU: BXS-AM
Price: 133.3 EUR
Availability: InStock

In stock

SKU: BXS-AM

Are you a Reseller? Register Here

Description

BXS-AM Optex Sensor with Dual PIR - External Mounting

Optex's BXS-AM sensor is designed to offer high reliability in motion detection in outdoor environments. Equipped with a dual PIR (passive infrared) system, this wired sensor provides extensive and precise coverage, minimizing false alarms and detection failures. The sensor is equipped with advanced features such as anti-masking and anti-tamper protection, and is ideal for monitoring the perimeter of buildings.

Performance:

Range : 24 m total (12 m on each side), 180° detection angle with adjustable beams.
SMDA Logic : Advanced temperature compensation and immunity to environmental disturbances.
Outputs : Individual signal for left and right.
Anti-masking : Active infrared to detect attempts to cover the sensor.
Anti-detachment protection : Rear protection to prevent tampering.

Characteristics:

Detection Type : Passive infrared.
Coverage : 24 m (12 m on each side) with a 180° angle divided into 4 zones.
PIR Distance Limit : Adjustable from 2.5 to 12 m (5 levels).
Detection Speed : From 0.3 to 2.0 m/s.
Sensitivity : 2.0°C @ 0.6 m/s.
Power supply : 9.5 to 18 V DC
Absorption : 34 mA (max.) @ 12 V dc
Alarm Duration : 2.0 ± 1 seconds.
Heating Time : About 60 s (LED flashes during heating).
Alarm Output : Selectable NC / NO 0.1 A @ 28 V dc (max.).
Fault Output : NC 0.1 A @ 28 V dc (max.).
Tamper Output : NC 0.1 A @ 28 V dc (max.), activates when the front cover, main unit or fixing base is removed.
LED indicator : Red for heating, alarm, anti-masking detection, with DIP switch ON or motion test.
Operating Temperature : From –30°C to +60°C.
Humidity : 95% max.
Protection Degree : IP55.
Fixing positions : Wall or pole (both external and internal).
Fixing Height : From 0.8 to 1.2 m.
Weight : 430 g.
Accessories Included : 2 screws (4x20 mm).

More Information

SKU Padre	BXS-AM
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	5 years warranty
Color	White
Detection distance	Fino a 12mt
Operating temperature	-15°C to +50°C
Waterproof	IP65
