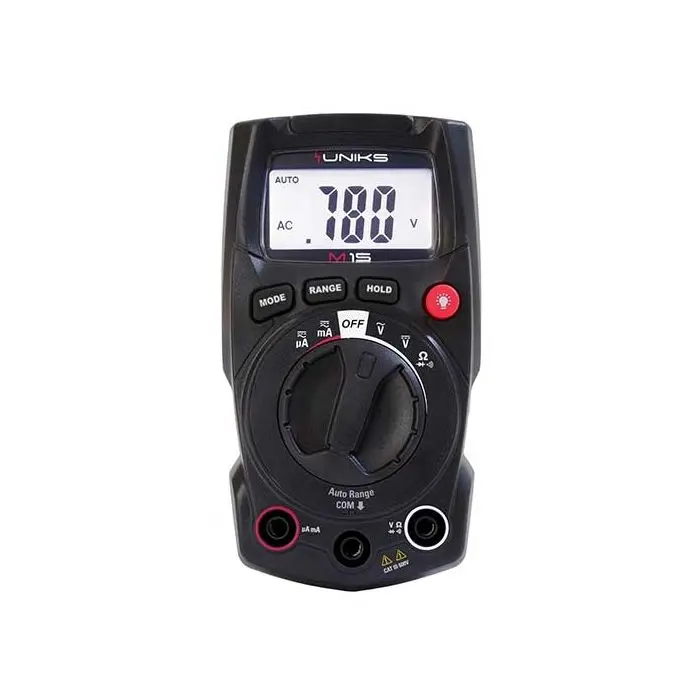

Portable ultra compact digital multimeter IEC/EN 61010-1 CAT III 600V Uniks M15

Name: Portable ultra compact digital multimeter IEC/EN 61010-1 CAT III 600V Uniks M15
Brand: UNIKS
SKU: M15
Price: 36.86 EUR
Availability: OutOfStock

Out of stock

SKU: M15

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Uniks M15 is a compact digital multimeter capable of performing AC/DC voltage measurements up to 600V and AC/DC current up to 200mA, with complementary functions of: resistance, diode test, continuity, data hold, auto power off. It is equipped with a large LCD display with 2000 measurements counts and each function can be selected using special switch. It also allows you to work in poorly lit environments thanks to the built-in flashlight and the backlit display.

Safety conformance

EMC & LVD
EN: 61326
EN: 61010-1
EN: 61010-02-032
EN: 61010-02-033

Functions

Auto range
LCD display
Display points 2000
Autopower OFF
Backlight
Data Hold

Data sheet

Diode verification: Test current of 0.3 mA typical; open circuit voltage
Continuity Check: 1.5V DC typical
Low battery: shown in the display
OverRange indication: “OL” shown in the display
Measurement rate: 2 per second nominal
Input Impedance: 10mΩ (VDC and VAC)
Display: 2000 dots LCD
AC Current: 50Ω 400Hz (AAC)
AC voltage bandwidth. : 50Ω 400Hz (VAC)
Operating temperature: 5 ° C to 40 ° C (41 ° F to 104 ° F)
Storage temperature: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Operating humidity: Max 80% up to 31 ° C (81 ° F) linear decrease up to 50% at 40 ° C (104 ° F)
Storage humidity: <80%
Maximum altitude: 2000 m
Overvoltage: Category III 600V
Battery: 2 "AAA" batteries
Auto Power Off: Approximately after 15 minutes
Safety: For indoor use and in compliance with overvoltage category II, pollution degree 2.
Overvoltage Cat: Cat. III 600V
