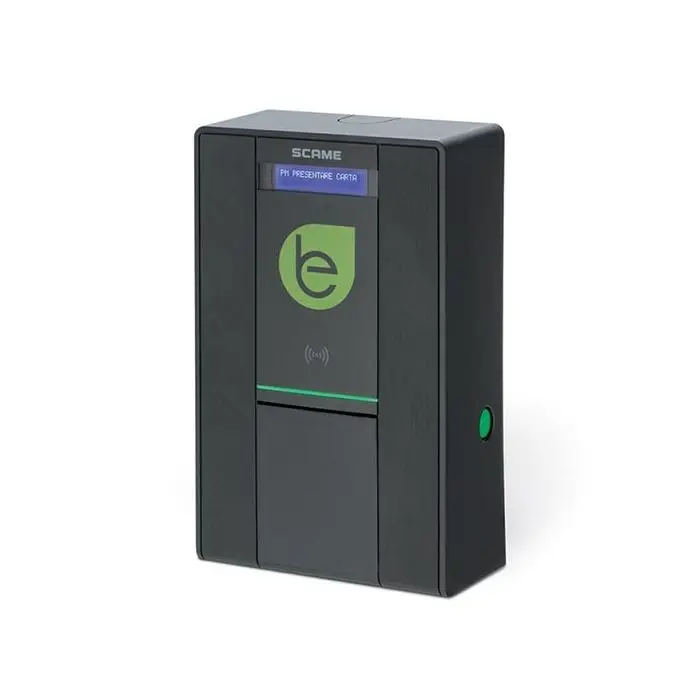

Smart Wall Box in Halogen-free engineering plastics, for wall assembly, equipped with display and Type 2 socket 1P+N+PE 32A 230 Vac 7.4 kW, fitted with safety shutters in compliance with standard IEC/EN 62196-2, equipped with Energy Meter and Residual Current Circuit Breaker Overcurrent Protection (RCBO). Suitable for electric vehicle charging in «mode 3» in compliance with standard EN61851-1. Version for domestic charging in absolute safety, featuring Power Management function, allowing the vehicle charging current to be adapted based on the user’s contractual power and the current absorbed by domestic loads, thus preventing the main meter from unexpectedly tripping Exclusive design with «dual Feel Sensitive» finish, highly resistant to UV rays, high-level IP54 protection against dust and water with the possibility for personalisation.
It is ideal for installation in domestic settings such as: garages and private car parks that don't need controlled access insofar as use is normally limited to a few people and almost exclusively to the owners themselves of the means.
Features
- Charge in mode 3 with pwm circuit pilot
- Identification of connected cord-set size
- Protection against direct contact Safety Child Shutters
- Current consuption metering
- Managing of latching system
- Charge managing in case of power outage
- Working in mode stand-alone free
- Predisposition for serial communication
- POWER MANAGEMENT function (automatic modulation of charge current depending contractual power and power used by house).
