Out of stock
|
SKU: 1191031
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card and cash on delivery with a supplement of €6.00.

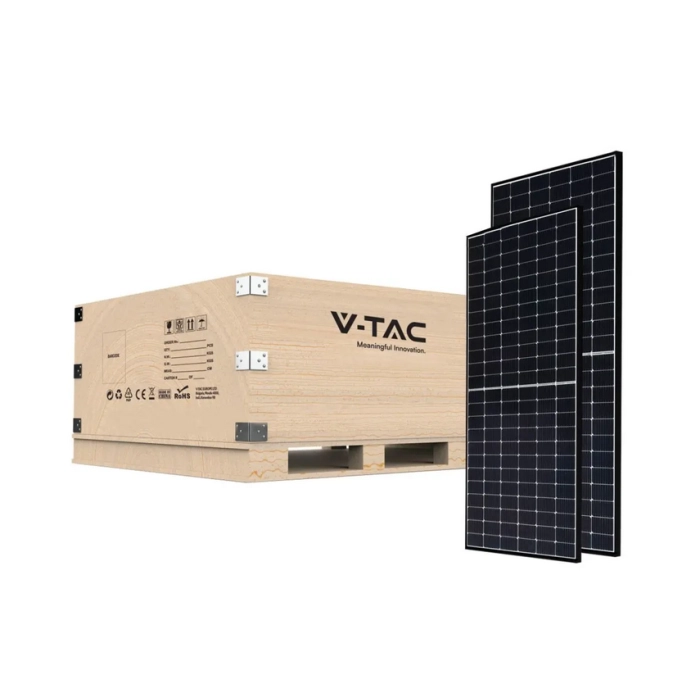

Set of 31 panels of 410W - 12,710kW
Packed on a pallet closed on all sides, to avoid damage during transport.
SKU (of the single panel) | 11910 |
Brand name | V-CT |
Degree of Protection | IP68 |
Dimension | 1722*1134*35mm |
Nominal power | 410W |
Current at maximum power point | 13.04A |
Short-circuit current | 11.16±3% |
Maximum System Voltage | 1500V |
Power Tolerance | 0-+3% |
Coeff. temp. voltage | -0.350 %/℃ |
Nominal operating temperature | 45±2°C |
Panel frames | Anodized aluminium |
Junction boxes | IP67/IP68 with 3 diodes |
Glass type | 3.2mm high transmission |
Manufacturability Guarantee | 85% in 25 years |
Warranty | 25 years old |
Material | Aluminum alloy and tempered glass |
Voltage at the point of maximum POWER | 29.2V |
Operating Temperature | -40 to +85°C |
Open circuit voltage | 37.45±3% |
Module efficiency | 20.97% |
Maximum Fuse Current | 25A |
Coeff. temp. power | -0.350%/°C |
Coeff. temp. current | +0.048%/°C |
Maximum panel load | Wind/Snow: 2400Pa/5400Pa |
Number of cells | 108 (12x9) |
Cell type | 182*91mm monocrystalline |
Output cables | 4mm² cable 100cm (Including MC4 connector) |
Weight | 21.5Kg |
SKU Padre | AU410-27V-MH |
---|---|
Ean | Non Applicabile |
Shipping | Shipping 24/48H |
Warranty | 25 years warranty |
Colore | Gray |
Dimensions | 1722*1134*35mm |
Power | 410W |
Waterproof | IP68 |
Panel thickness | 35mm |
