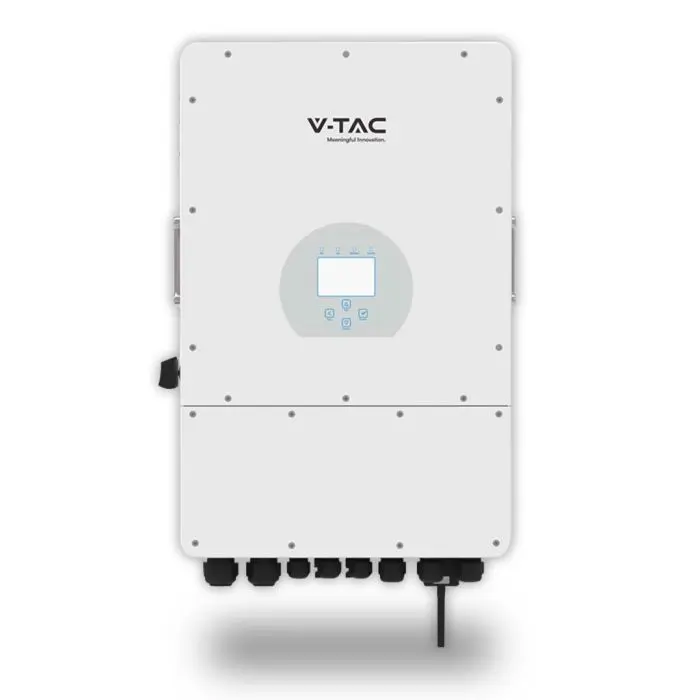

| MODEL | sku 11542 - SUN-10K-SG04LP3-EU |
| Battery Input Data | |
| Battery Type | Lead acid or Li-lon |
| Battery Voltage Range (V) | |
| Max. Charging Current (A) | 210 |
| Max. Discharging Current (A) | 210 |
| External Temperature Sensor | YES |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaptation to BMS |
| Input | |
| Max. Input Power | 13000W |
| Max. Input Voltage | 550V |
| Start Voltage / Min. Operating Voltage | 160V |
| MPPT Voltage Range | 200V-650V |
| Full Load DC Voltage Range (V | 350-650 |
| PV Input Current (A | 26+13 |
| Max. PV I (A) | 34+17 |
| No.of MPP Trackers | 2 |
| No.of Strings for MPP Tracker | 2+1 |
| Output | |
| Rated AC Output and UPS Power (W) | 10000 |
| AC Output Rated Current (A) | 15.2/14.5 A |
| Max. AC Current (A) | 22.7/21.7 |
| Max. AC Output Power (W) | 11000W |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 times rated power, 10 S |
| Output Frequency and Voltage | R50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Rated Grid Voltage | 230V, L+N+PE |
| Power factor | 0.8 leading to 0.8 lagging |
| Grid Type | Three Phase |
| DC injection current (mA) | THD<3% (Linear load<1.5%) |
| Efficiency | |
| Max Efficiency | 97.6% |
| Max Efficiency (European) | 97.0% |
| MPPT Efficiency | 99.9% |
| Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Communication | |
| Display | LCD (Standard) |
| Cooling: | Smart cooling |
| System Language | English / Chinese / German / Dutch |
| Communication | Standard: RS485; CAN |
| Standards compliance | |
| Network connection standards | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Safety / EMC | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Dimensions | 422W x 699.3H x279D |
| Weight | 33.6 KG |
| Operating temperature | '-25º~+60º (Derating above 45º) |
| Degree of protection | IP65 |
| Noise | <30dB |
| Maximum operating altitude | 3000m |
| Relative humidity | 0-95% |
| Warranty | 10 YEARS |
