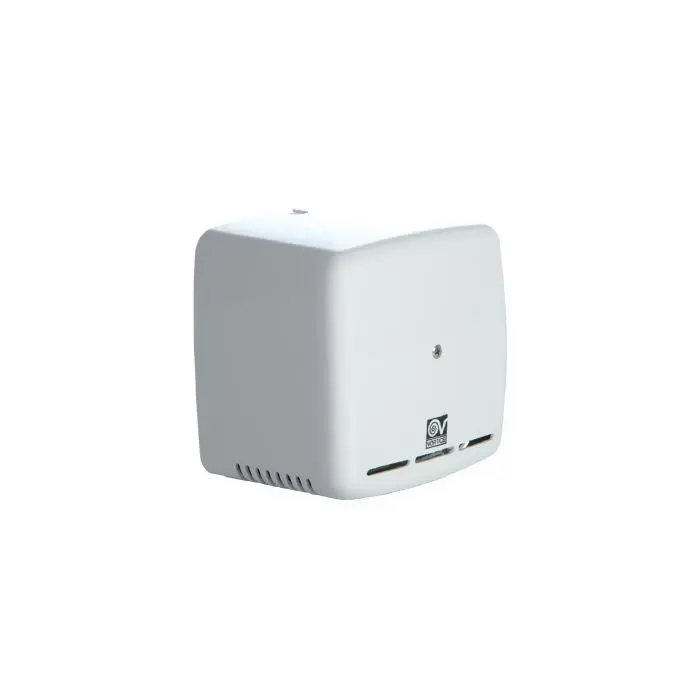

VORTICE centrifugal duct extractor ARIETT LL T 11966

Name: VORTICE centrifugal duct extractor ARIETT LL T 11966
Brand: VORTICE
SKU: VOR0000011966
Price: 163.08 EUR
Availability: InStock

In stock

SKU: VOR0000011966

Are you a Reseller? Register Here

Description

Vortice Ariett LL T, code 11966:

Centrifugal duct extractor

Construction: Made of age-resistant plastic resin, designed to withstand direct exposure to the sun ("UV resistant").
Nominal diameter: 100 mm
Motor: Thermally protected, with shaft mounted on ball bearing supports to ensure greater durability and reliability.
Maximum flow rate: 70 m3/h
Electronic Timer: Equipped with an electronic timer that allows the product to automatically turn off after a preset time. The shutdown time can be set during installation in the range from 3 to 20 minutes, with a default setting of 3 minutes.
Anti-Return Valve: Applied to the delivery port to prevent the return of air.
Speed Control: It is possible to control the speed of the vacuum cleaner using a Vortice regulator, allowing optimal management of performance according to needs.

This centrifugal duct extractor is designed to ensure effective air extraction in domestic or commercial environments, combining high performance, durability and ease of control thanks to the timer and integrated speed regulator.

Data sheet

Max absorbed current (A): 0.14
Nominal Duct Diameter (mm): 100
Frequency (Hz): 50
Protection grade: IPX4
Insulation: 2nd class
Ø Exhaust (mm): 97
Weight (Kg): 1.47
Max absorbed power (W): 18
Max power absorbed at max speed. (W): 18
Max continuous operating ambient temperature (°C): 40
Voltage (V): 230
Max flow rate (l/s): 19.4
Max flow rate (m³/h): 70
Max pressure (mmH2O): 12
Max pressure (Pa): 118
Sound pressure Lp [dB (A)]: 40 at 3m
RPM: 2315
Name or trade name of the manufacturer: Vortice
Specific energy consumption class for temperate climate: NA
Specific energy consumption SEC (temperate climate) [kWh/m2a]: -5.5
Specific energy consumption SEC (cold climate) [kWh/m2a]: -18.9
Specific energy consumption SEC (hot climate) [kWh/m2a]: 2.1
Declared type of ventilation unit: UVR-U: unidirectional
Drive type: NO
Type HRS heat exchanger: absent
Thermal efficiency of heat recovery at HRS reference flow rate [%]: NA
Maximum flow rate [m3/h]: 71

More Information

SKU Padre	11966
Ean	8010300119663
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	resina plastica
Nominal diameter	100mm
Installazione	a muro
Colore	White
Watts	15
Smart home	No
Waterproof	IP54
Packaging	1
Voltage	AC:200-240V
