VORTICE wall-mounted helical extractor fan MF 120/5" 120mm - 11124

Name: VORTICE wall-mounted helical extractor fan MF 120/5" 120mm - 11124
Brand: VORTICE
SKU: VOR0000011124
Price: 53.03 EUR
Availability: InStock

In stock

SKU: VOR0000011124

Are you a Reseller? Register Here

Description

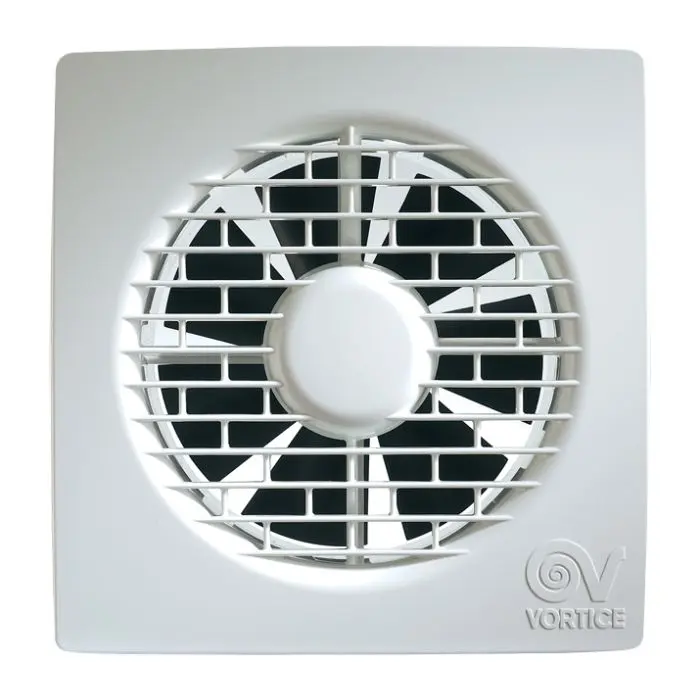

Vortice 11124, model MF 120/5":

Type: Wall-mounted helical extractor.
Construction: Made of age-resistant plastic resin, designed to withstand prolonged exposure to the sun (UV resistant).
Nominal diameter: 120 mm.
Motor: Equipped with a thermally protected motor, with shaft mounted on self-lubricating bushing supports. The impeller is helical in thermoplastic material with wing profile blades.
Maximum flow rate: 175 m3/h, which indicates the maximum amount of air that can be conveyed through the unit in one hour.
Anti-return valve: Applied to the delivery port, it helps prevent the unwanted return of air.
Speed controllable: It is possible to control the operating speed of the vacuum cleaner using a Vortice regulator.

This extractor is designed for installation on walls and is ideal for improving ventilation in rooms such as bathrooms, kitchens or technical rooms. The resistant construction, the presence of the anti-return valve and the possibility of controlling the speed make it suitable for a wide range of applications.

Data sheet

Characteristic Value

Max absorbed current (A)	0.12
Nominal Duct Diameter (mm)	120
Frequency (Hz)	50
Protection Grade	IPX4
Isolation	Class II
Ø Exhaust (mm)	119
Weight kg)	0.61
Max absorbed power (W)	20
Maximum continuous operating ambient temperature (°C)	50
Voltage (V)	220-240
Max flow rate (l/s)	49
Max flow rate (m³/h)	175
Max pressure (mmH2O)	5
Max pressure (Pa)	49
Sound Pressure Lp [dB (A)] 3m	34.4
RPM	2150

More Information

Ean	8010300111247
Shipping	Shipping 24/48H
Warranty	2 year warranty
Materials	resina plastica resistente
Nominal diameter	120mm
Installazione	a muro
Colore	White
Watts	5
Smart home	No
Waterproof	IP54
Packaging	4
Voltage	AC:200-240V
