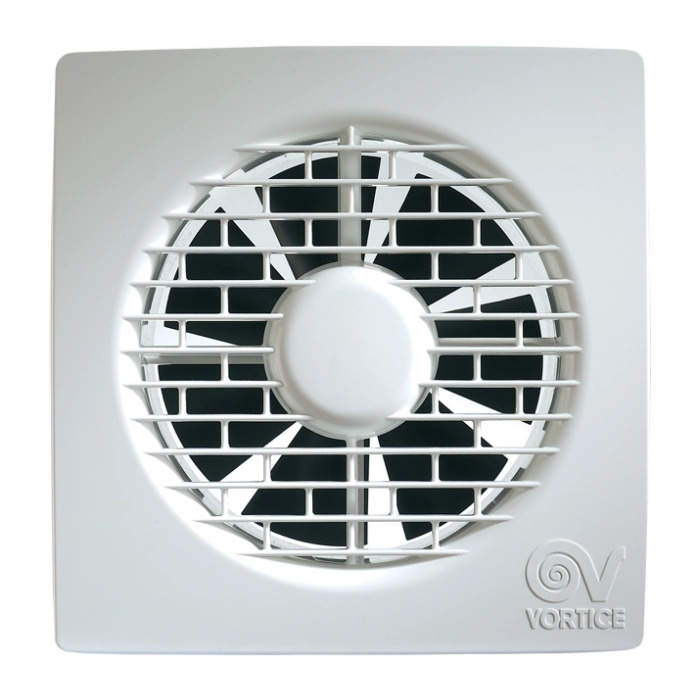

VORTICE MF 100/4" T HCS LL 100 mm wall-mounted helical vacuum cleaner with timer and humidity sensor

Name: VORTICE MF 100/4" T HCS LL 100 mm wall-mounted helical vacuum cleaner with timer and humidity sensor
Brand: VORTICE
SKU: VOR0000011139
Price: 104.11 EUR
Availability: InStock

In stock

SKU: VOR0000011139

Are you a Reseller? Register Here

Description

Vortice 11139 MF 100/4" T HCS LL:

Construction : Made of age-resistant plastic resin, designed to withstand exposure to the sun (UV resistant).
Nominal diameter : 100 mm.
Motor : Thermally protected, with shaft mounted on ball bearing supports, combined with a helical impeller in thermoplastic material with aerofoil blades.
Maximum flow rate : 85 m3/h.
Electronic board : Equipped with a relative humidity (RH) sensor with 4 predefined threshold levels (60%, 70%, 80%, 90%) selectable during installation. The board also includes an electronic timer to automatically turn off the fan after the relative humidity has returned below the preset threshold. The timer duration can be set during installation in the range 3'-20' (default: 3').
Anti-return valve : Applied to the delivery port to prevent unwanted air flow.
Speed control : Possibility to regulate the speed using a Vortice regulator.

This fan is designed for effective ventilation in rooms such as bathrooms, kitchens or other spaces where it is necessary to control humidity and maintain adequate air circulation. Its durable construction and advanced control features make it a reliable choice for the home or commercial environment.

Data sheet

Maximum absorbed current (A) : 0.09
Nominal Duct Diameter (mm) : 100
Frequency (Hz) : 50
Protection Degree : IPX4
Insulation : 2nd class
Weight (Kg) : 0.52
Maximum absorbed power (W) : 15
Maximum ambient temperature for continuous operation (°C) : 50
Voltage (V) : 220-240
Maximum flow rate (l/s) : 24
Maximum flow rate (m³/h) : 85
Maximum pressure (mmH2O) : 3
Maximum pressure (Pa) : 29
Sound pressure Lp [dB (A)] at 3m : 31
RPM (Rotations Per Minute) : 2400
Annual electricity consumption (AEC) : 343 kWh of electricity per year
Annual heating savings (AHS) under different conditions:
- Temperate: 1397 kWh of primary energy per year
- Cold: 2732 kWh of primary energy per year
- Heating: 632 kWh of primary energy per year
